Description

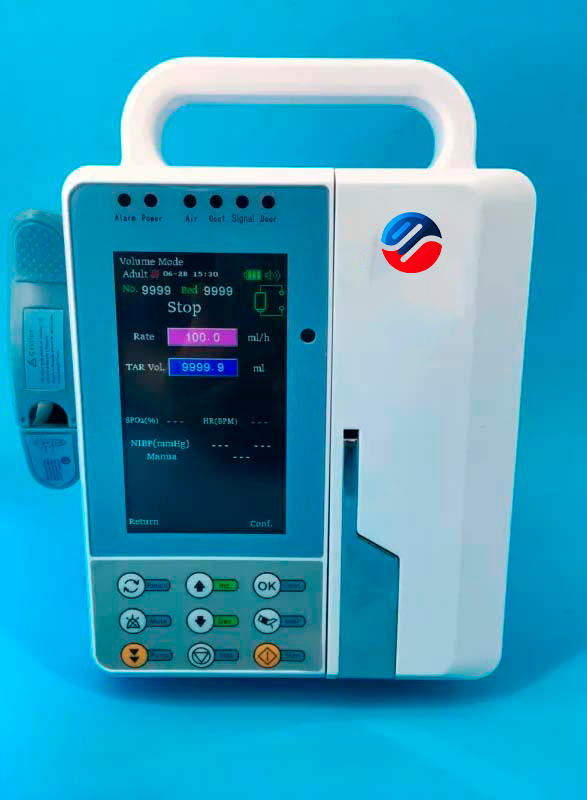

The 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YG0983 is an advanced medical device designed to ensure precise and controlled fluid infusion in hospital, clinical, and emergency settings. Featuring a high-resolution LCD screen with backlight, this infusion pump provides real-time monitoring of infusion parameters, including time, battery status, infusion rate, volume, sound alerts, pressure, and temperature.
Equipped with three working modes (rate/volume/time mode), this device allows healthcare professionals to adjust the infusion speed accurately based on patient needs. The peristaltic pumping mechanism ensures consistent and reliable fluid delivery, while the integrated audible and visual alarm system enhances patient safety. Additionally, the pump supports disposable IV sets from any brand, providing versatility and ease of use.
Market Price
The 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YG0983 is competitively priced within the medical equipment industry, typically ranging from $774 to $800 USD, depending on accessories, supplier pricing, and optional features such as the heating function and central monitoring system.
Frequently Asked Questions
- Can this infusion pump be used with any IV set?
Yes, this model is compatible with disposable IV sets from any brand, ensuring convenience and cost-effectiveness. - What are the available infusion modes?
It supports three working modes: rate mode, volume mode, and time mode, allowing for precise customization of infusion settings. - Does this pump have a backup battery?
Yes, it is equipped with a rechargeable lithium-ion battery (11.1V, 2000mAh), capable of running over 4 hours at a flow rate of 25ml/h after a full charge. - What types of alarms are included?
The pump features multiple safety alarms, including infusion full, empty, bad signal, malfunction, occlusion, door open, air bubble detection, low battery, setup error, and AC power failure.
Advantages and Disadvantages
Advantages:
- Large 4.3-inch backlit LCD screen for clear visibility in any lighting condition.
- Three infusion modes (rate/volume/time mode) for customized infusion settings.
- Wireless monitoring (optional) for real-time infusion status updates.
- High-precision infusion control with a 3% flow accuracy margin.
- Compact and lightweight design (2.2 kg) for easy handling and transportation.
- Integrated safety alarms to prevent infusion errors and ensure patient safety.
Disadvantages:
- Heating function is optional, requiring an additional investment.
- Battery runtime is limited to 4 hours, requiring frequent recharging.
- Advanced features may require user training for optimal operation.
Field Applications and Recommendations
The 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YG0983 is widely used in hospitals, intensive care units (ICU), emergency rooms, and mobile medical units for precise and controlled fluid administration. Its user-friendly interface and high-precision pumping system make it an essential tool for critical care and long-term infusion therapies.
Technical description
| Model | YG0983 |
| Pump type |
Drip Type Infusion Pump
|
| Pumping Form | peristaltic fingers |
| Adjustable Fall Rate Range |
1 ~ 400 drops / min (step: 1 drop / min)
|
| Adjustable Volume Rate Range |
1 ~ 1200 ml / h (when 1 ~ 99.9 ml / h, step: 0.1 ml / h; greater than 99.9 ml / h, step: 1 ml / h)
|
| Flow Accuracy |
Within 3% or so (using manufacturer’s designated IV kit or high quality calibrated IV kit)
|
| Mechanical precision | within 2% or so |
| Purge Rate | 800ml / h |
|
KVO rate
|
1 ml / hour (1 ~ 300 ml / hour)
|
|
3 ml / h (more than 300 ml / h)
|
|
| Infusion Volume Range |
1 ml ~ 9999.9 ml (step: 0.1 ml)
|
| Maximum Accumulated Volume |
9999.9 ml (step: 0.1 ml)
|
| Time interval |
1 min ~ 9999 min (step: 1 min)
|
|
Occlusion Alarm Threshold
|
Height: 800 mmHg + -200 mmHg (106.7 kPa + -26.7 kPa)
|
|
Medium: 500 mmHg + -100 mmHg (66.7 kPa + -13.3 kPa)
|
|
|
Low: 300 mmHg + -100 mmHg (40.7 kPa + -13.3 kPa)
|
|
| Alarm |
Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle.
|
|
Air Bubble Detector Method
|
ultrasonic wave, sensitivity: greater than or equal
|
| 25 l | |
| Fuse |
F1AL / 250V (“F” indicates fast, “L” indicates low breaking power), 2 pieces (installed inside the pump).
|
| Power supply |
AC 85 ~ 265V, 50 / 60Hz;
|
|
Internal Battery
|
11.1V rechargeable lithium-ion battery. Capacity: greater than or equal to 2000 mAh;
|
|
The pump can run more than 4 hours at a flow rate of 25ml / h after charging for 8 hours (average flow rate specified by GB 9706.27-2005).
|
|
| Energy |
less than or equal to 40VA
|
| Size |
188mm (length) x 198mm (width) x 228mm (height)
|
| Weight | 2.2 kg |
|
Environmental requirements
|
Transport |
|
Ambient temperature: -30 ° C ~ + 55 ° C
|
|
|
Relative humidity: 20% ~ 95% (non-condensing)
|
|
|
Atmospheric pressure: 70kPa ~ 106kPa
|
|
| Storage | |
|
Ambient temperature: -30 ° C ~ + 55 ° C
|
|
|
Relative humidity: 20% ~ 95%
|
|
|
Atmospheric pressure: 70kPa ~ 106kPa
|
|
| Operation | |
|
Ambient temperature: + 5 ~ + 40 ° C
|
|
|
Relative humidity: 20% ~ 90%
|
|
|
Atmospheric pressure: 86kPa ~ 106kPas
|
|
| Calibration function |
disposable IV set of any brand is suitable for this pump
|
| Three Working Modes |
Rate / volume / time mode
|
| Alarm |
Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle.
|
