Description

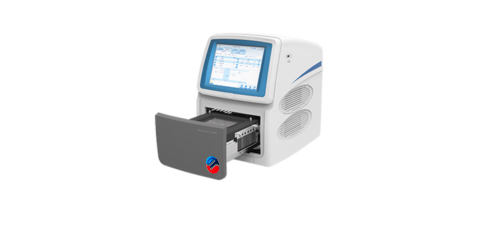

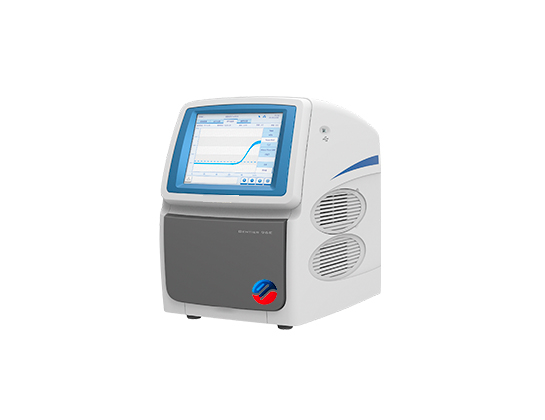

The Real-time PCR System YG1280 is an advanced PCR assay machine designed to meet the demanding needs of high-end laboratories, research institutions, and diagnostic centers. With the capability to process 96 samples in a single test and six fluorescence channels, this system offers rapid, high-accuracy detection for a variety of applications, including quantitative analysis, SNP genotyping, and melting curve analysis.

Designed for maximum efficiency, the YG1280 features a high-speed fluorescence scanning system, completing a full 96-well scan in just 7 seconds. The Peltier-based thermal block provides exceptional heating and cooling rates (>6.1°C/s and >5.0°C/s, respectively), ensuring precise and reproducible PCR cycles. Its dual control modes—a 10.4-inch touchscreen interface or PC software control—make it a versatile and intuitive solution for laboratories requiring both standalone and remote operation.

Market Price

The YG1280 Real-time PCR System is available in the market for $28.680– $28,800 USD, depending on configuration, accessories, and software packages. This high-end PCR system is a valuable investment for laboratories that require reliable, high-throughput, and fast real-time PCR capabilities. To receive an accurate quotation, contact an authorized distributor.

Frequently Asked Questions

• What are the primary applications of the YG1280 PCR system?
  The YG1280 is ideal for clinical diagnostics, genetic research, infectious disease detection, veterinary testing, and food safety analysis.
• How long does a full PCR cycle take?
  A standard PCR amplification process is completed in approximately 40 minutes, significantly improving workflow efficiency.
• Can the system operate independently without a PC?
  Yes, the YG1280 features a 10.4-inch touchscreen for standalone operation. However, it can also be controlled via PC software, offering flexibility for different laboratory workflows.
• What types of consumables are compatible with the YG1280?
  This system supports 0.2mL 96-well plates, 8-tube strips, and single tubes (clear, frosted, and white), making it adaptable to various research and diagnostic needs.

Advantages and Disadvantages

Advantages:

• Fast fluorescence scanning (96 wells in 7 seconds) for high-throughput analysis
• Six fluorescence channels for multiplexed PCR assays
• Peltier thermal control system for superior heating and cooling rates
• Power failure protection ensures automatic experiment recovery
• Dual control options: 10.4-inch touchscreen operation or PC software control
• USB data transfer and built-in storage for up to 1000 results
• Flexible reporting functions with customizable experiment templates

Disadvantages:

• Higher price compared to entry-level PCR systems
• Requires external printer for direct result printing
• Larger size (555×475×484mm) may require dedicated bench space

Field Applications

The YG1280 Real-time PCR System is widely used in:

• Medical and Veterinary Diagnostics – Detecting infectious diseases, genetic mutations, and veterinary pathogens
• Food Safety Testing – Identifying bacterial contaminants, allergens, and toxins in food products
• Scientific Research – Conducting quantitative PCR, gene expression studies, and SNP genotyping
• Environmental and Agricultural Testing – Monitoring genetic markers in plants, water quality testing, and microbial detection

With its high sample capacity, rapid processing speed, and user-friendly software, the YG1280 is a powerful and essential tool for laboratories requiring advanced PCR analysis.

Recommendations

To maximize performance and longevity, consider the following:

• Regularly update the software to enhance functionality and security
• Use high-quality 96-well plates or compatible tubes to maintain assay precision
• Ensure proper calibration before experiments to maintain optimal temperature accuracy
• Monitor and maintain the cooling and heating elements for consistent performance

Technical Specifications
