Description

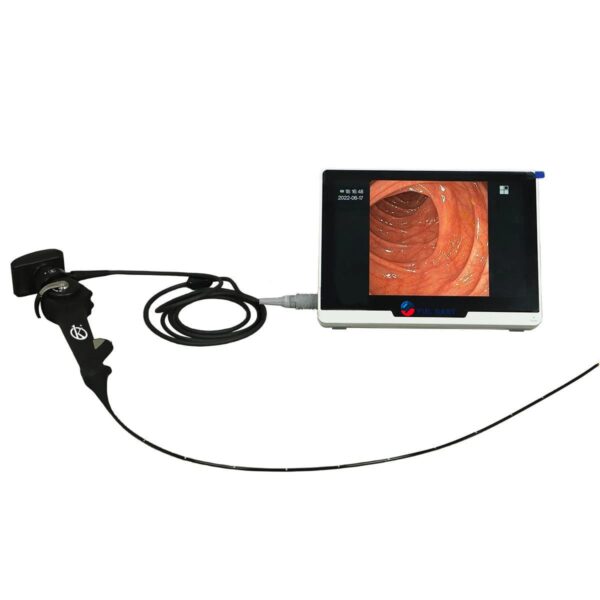

The Portable Veterinary Video Endoscope YG1857//YG1861 stands out for its high-resolution CMOS sensor, ensuring crystal-clear images with real-time display and no transfer delay. Designed for veterinary applications, this device features a durable LED light source and multi-function handle buttons, allowing veterinarians to operate it easily with one hand, capturing photos and videos, freezing frames, or zooming in on details. With a 4-way observation capability, including up/down bending and left/right rotating, this endoscope caters to diverse veterinary needs, from bronchoscopy to rhinoscopy, lung depth detection, and more.
Frequently Asked Questions
What types of examinations is this endoscope suitable for? This versatile endoscope is ideal for bronchoscopy, rhinoscopy, lung examination, urethral, and bladder examinations.
Is the setup of the endoscope user-friendly? Absolutely. The rotatable video adapter cable and one-hand operation make it highly convenient for veterinarians.
Advantages and Disadvantages
One of the major advantages of this endoscope is its clear imaging and easy operation, thanks to the ergonomic design. Additionally, its wide application range makes it invaluable in a veterinary setting. However, the initial investment cost might be a consideration for smaller practices.
Product Use in the Field
In real-world scenarios, the Portable Veterinary Video Endoscope YG1857//YG1861 is employed in diverse diagnostic procedures, offering practitioners the flexibility to navigate complex animal anatomy with precision and ease. Its robust design ensures reliability across different diagnostic conditions.
Recommendations
To optimize the lifespan of your endoscope, ensure regular cleaning and appropriate storage after use. Familiarize yourself with all available functions for maximum utility. Always consult the manual for detailed maintenance instructions to keep the device in optimal working condition.
Features
- High-resolution CMOS sensor
- Multi-function handle buttons
- Durable LED light source
- Four-direction observational capabilities
- Wide range of veterinary applications
- 10-inch screen size (YR06151 to YR06154); 4-inch for YR06155 model
Technical Specifications
| Model | Diameter of Insertion Tube | Working Channel | Working Length | View Angle | View Depth | Range of Bending | Screen size |
| YG1857 | 2.8 mm | 1.2 mm | 610 mm | 120° | 3-200 mm | 210° (U), 130° (D) 120° (R), 120° (L) |
10-inch |
| YG1858 | 3.8 mm | 1.5 mm | 1000 mm | 120° | 3-200 mm | 180° (U), 130° (D) 120° (R), 120° (L) |
10-inch |
| YG1859 | 4.8 mm | 2.0 mm | 1000 mm | 120° | 3-200 mm | 180° (U), 130° (D) 120° (R), 120° (L) |
10-inch |
| YG1860 | 5.8 mm | 2.8 mm | 1500 mm | 120° | 3-200 mm | 180° (U), 130° (D) 120° (R), 120° (L) |
10-inch |
| YG1861 | 5.8 mm | 2.8 mm | 1500 mm | 120° | 3-100 mm | 180° (U), 130° (D) 120° (R), 120° (L) |
4-inch |
