Description

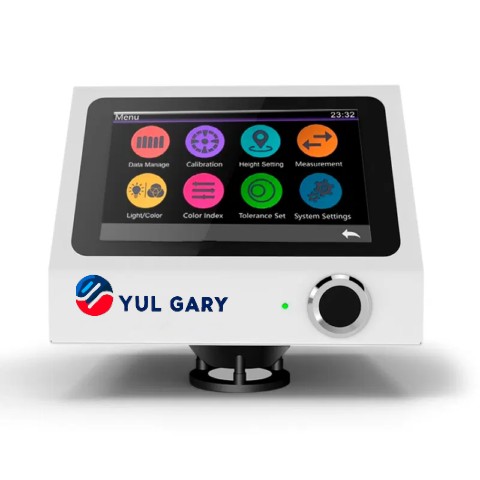

The Non-contact Benchtop Spectrophotometer YG1952 is an advanced instrument designed for precise and reliable color measurements across various industries. Thanks to its non-contact capability, it can measure liquids, sauces, powders, and other substances without the risk of contamination. Equipped with a 256-pixel dual-matrix CMOS image sensor, full-spectrum LED light source, and concave grating spectroscopy technology, the YG1952 ensures high accuracy and consistency in following international quality control standards.
Market Price
The YG1952 spectrophotometer is competitively positioned in the market with a price range typically between $2,000 and $5,000, depending on the retailer and additional customizations. Its advanced features and adaptability make it a valuable investment for businesses that demand precise color measurements.
Frequently Asked Questions
What types of samples can the YG1952 measure? The YG1952’s non-contact technology enables it to measure liquids, powders, and sauces, providing versatility in various applications.
Is the spectrophotometer compatible with international standards? Yes, it complies with CIE standard No.15, GB/T 3978, and other major international measurement standards.
What is the lifespan of the LED light source? The LED light source is engineered to last over 5 years, sustaining more than 3 million measurement cycles.
Advantages and Disadvantages
The YG1952 offers numerous benefits, including high accuracy, rapid measurement times, and a wide range of color spaces and illuminant options. However, potential drawbacks may include the initial cost and the need for specialized training to maximize its use.
Field Use
The YG1952 spectrophotometer is especially effective in automated production lines for quality control, ensuring color consistency across batches. Its swift measurement cycle of just 200 milliseconds facilitates high throughput, making it ideal for industries such as food production, textiles, and printing.
Recommendations
To fully utilize the YG1952, it is recommended to perform regular calibration and use the device in a controlled environment that meets the specified operating temperature and humidity levels. Utilizing the customizable software functions can further enhance its applicability across diverse scenarios.
Features
- Non-contact testing for diverse sample types
- 256-pixel dual-matrix CMOS image sensor for high precision
- Full-spectrum LED light source
- Concave grating spectroscopy technology
- Bluetooth 5.0 for stable data transmission
- Extensive color spaces and illuminant options
- Quick measurement cycle of 200 milliseconds
Technical Specifications
| Model | YG1952 |
| Optical Geometry | D/8 (diffuse illumination, reception at 8°, SCI includes specular reflection light) |
| Complies with CIE standard No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 | |
| Features | Non-contact test, customizable measurement time and software functions |
| Light Source | Full-spectrum LED and UV light source |
| Spectrophotometric Mode | Concave grid |
| Sensor | 256-pixel dual-matrix CMOS image sensor |
| Wave Range | 400~700nm, 10nm output |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Φ20mm (Φ10mm can be customized) |
| Non-contact Distance | 3.0 mm (±0.2 mm) |
| Sample Height | Unlimited thickness |
| Distance Adjustment Method | Fixed height according to sample |
| Measuring Mode | Software customization function |
| Locating | Camera location |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 |
| Color Difference Formula | ΔE*ab, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter), DINΔE99 |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter) |
| YI(ASTM D1925, ASTM 313) | |
| Index of Metamerism MI | |
| Stain resistance, color fastness, strength, opacity | |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1 – F12 |
| Data Shown | Spectrogram/values, sample chromaticity values, color difference/graphic values, color simulation, pass/fail result |
| Measuring Time | As fast as 0.2 seconds |
| Data Storage | Sample mode + Quality control mode 18,000 |
| Continuous statistical mode 30,000, not more than 48,000 | |
| Repeatability | Optimal mode (1.5 seconds): |
| Spectral reflectance: within 0.1% standard deviation | |
| Chromaticity value: ΔE*ab within 0.03 | |
| Error Between Instruments | Within ΔE*ab 0.2 (BCRA series Ⅱ average value) |
| Method of Measurement | Single measurement, average measurement (2~99 times) |
| Dimension | 200*200*160mm (test probe) |
| Weight | Approx. 3 kg (test probe only) |
| Energy | AC 24V, power adapter 3A |
| Illuminating Life | 5 years, > 3 million measurements |
| Monitor | 7-inch TFT color LCD, touch screen |
| Data Port | USB, Bluetooth®5.0 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 0~40 ℃, 0~85 % RH (non-condensing), altitude: < 2000 m |
| Storage Environment | -20~50℃, 0~85% RH (no condensation) |
| Standard Accessory | Power adaptor, manual, data cable, standard calibration plate, black calibration box |
| Notes | Suitable for optimized production lines, additional customization may incur costs. |
