Description

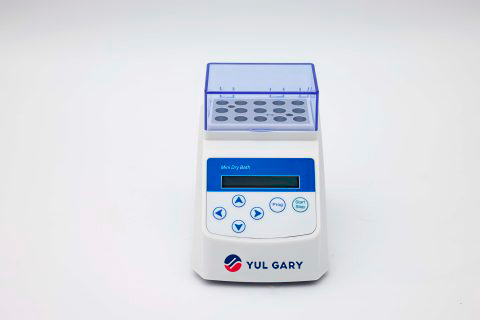

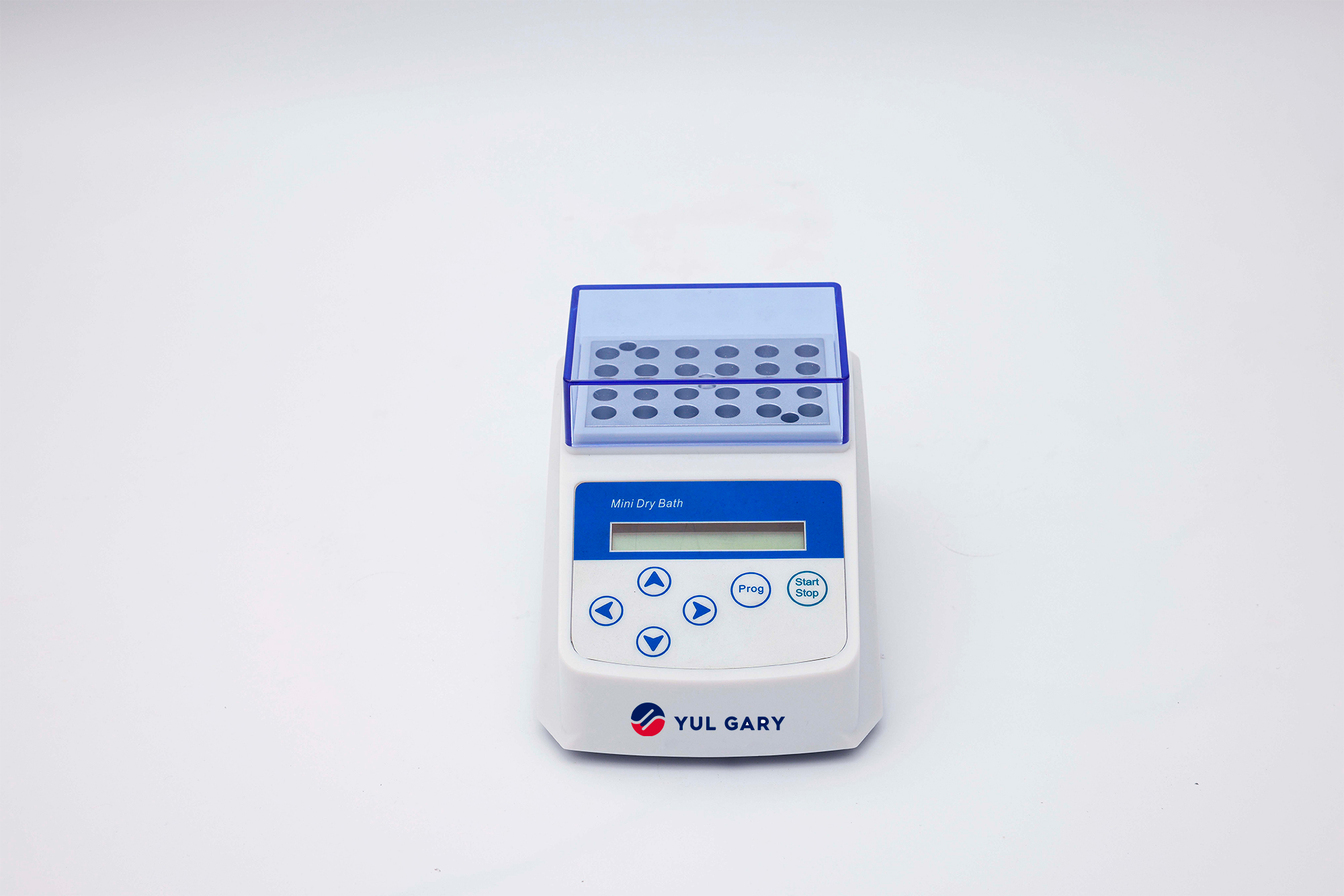

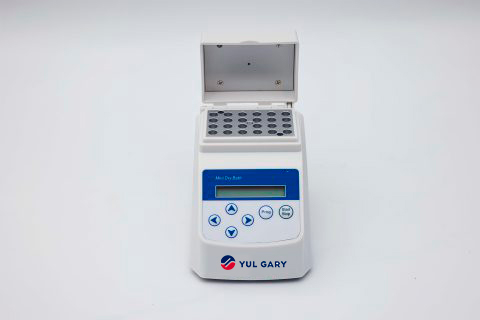

The Mini Dry Bath Incubator YG1612 // YG1614 is a compact and lightweight temperature control device, ideal for rapid inspections and small laboratory applications. Its PID-controlled heating system ensures high precision and uniformity, making it suitable for DNA amplification, sample preservation, and enzyme reactions.
Designed for portability and efficiency, this incubator is powered by DC 12V, allowing it to be used with vehicle power supplies, making it an excellent choice for mobile laboratories or field testing. The built-in over-temperature protection and automatic failure detection with a buzzer alarm provide enhanced safety and reliability.
Market Price
The Mini Dry Bath Incubator YG1612 // YG1614 is available within a price range of $245 to $465 USD, depending on the model and optional accessories. This pricing makes it a cost-effective solution for laboratories seeking precision, portability, and ease of use.
Frequently Asked Questions
-
What is the difference between the YG1612 and YG1614 models?
- The YG1612 model offers standard heating functions, while the YG1614 model includes a heated lid, reducing sample evaporation and improving temperature consistency.
-
Can it be used with a vehicle power supply?
- Yes, it operates on DC 12V power, making it compatible with car battery power sources, perfect for mobile labs and field research.
-
What tube sizes are compatible with this incubator?
- It supports multiple centrifuge tube sizes, from 0.2ml to 50ml, with easily interchangeable heating blocks.
Advantages and Disadvantages
Advantages:
- Compact and portable design for field and laboratory use
- Highly precise temperature control (±0.3°C)
- Programmable with up to 9 stored programs and 3 segments each
- Supports a wide range of tube sizes with interchangeable blocks
Disadvantages:
- Limited heating capacity compared to larger dry baths
- Cooling function available only in YG1613
Field Applications
The Mini Dry Bath Incubator YG1612 // YG1614 is ideal for laboratories, field research, and point-of-care diagnostics, including:
- DNA and RNA amplification (PCR)
- Sample incubation in microbiology and biochemistry
- Enzyme and protein denaturation
- Portable laboratory analysis in environmental science
- Food safety and pharmaceutical testing
Its small footprint and lightweight design make it an excellent choice for mobile laboratories and on-the-go testing scenarios.
Recommendations
- Choose the YG1614 model if precise temperature stability and a heated lid are required.
- Ensure proper power supply compatibility when using it in mobile applications.
- Regularly clean and maintain the unit to prevent contamination and ensure longevity.
- Select the appropriate heating blocks based on the tube sizes used in your experiments.
Technical Specification
| Model | YG1612 | YG1613 | YG1614 |
| Temperature Control Range | RT+5℃ ~100℃ | RT-20℃ ~100℃ | RT+5℃ ~100℃ |
| Heating Up Rate(20℃ to 100℃ ) | ≤ 15m | ||
| Temperature Control Accuracy | ±0.3℃ | ||
| Temperature Stability @40℃ | ±0.3℃ | ||
| Temperature Stability @100℃ | ±0.3℃ | ||
| Display Accuracy | 0.1℃ | ||
| Timer | 0~99h, 0~99m, 0~99s | ||
| Max. Temperature | 100℃ | ||
| Max. Power | 48W | 60W | 120W |
| Cooling Down Rate | Natural cooling | ≤ 30m 100-25℃ ≤ 30m RT.- 20℃ | |
| Heating Lid | No | Yes | |
Optional Accesories

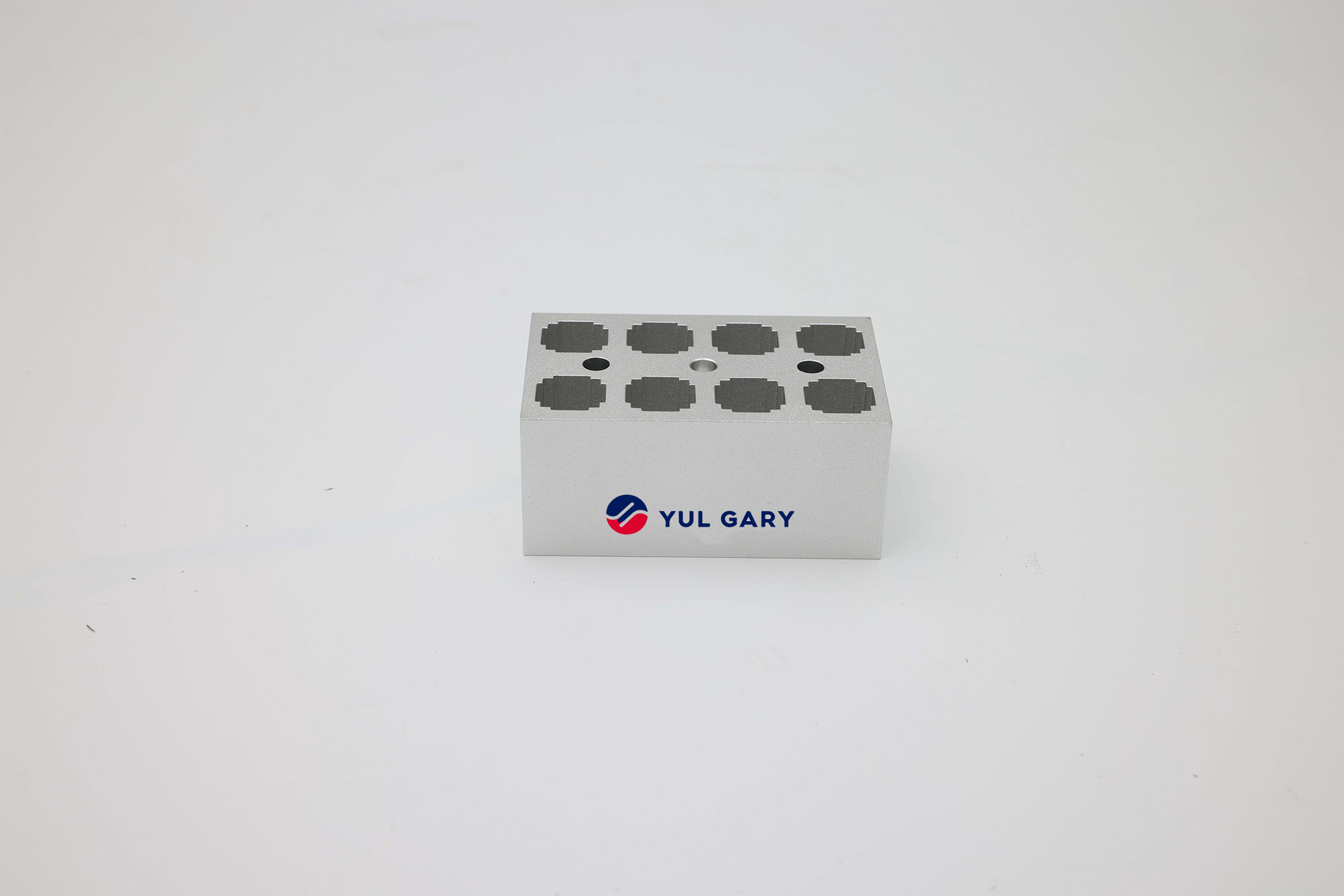

| Type | Tube Type | Description | Type Capacity |

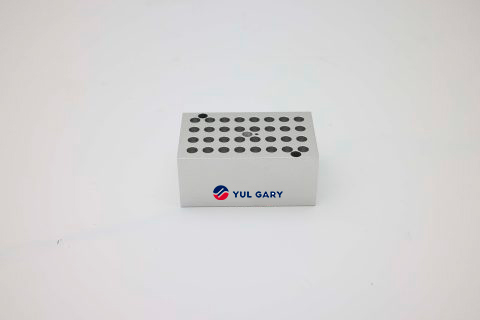

| YG1614-op1 | 0.2ml tube | 32 x 0.2ml Centrifuge Tube | 32 |

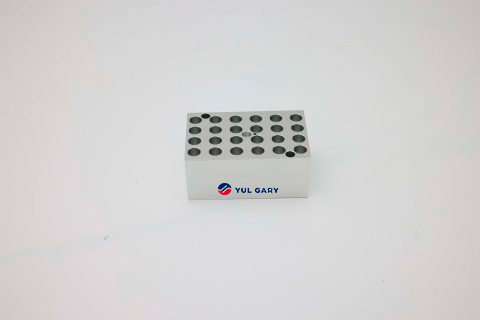

| YG1614-op2 | 0.5ml tube | 24 x 0.5 ml Centrifuge Tube | 24 |

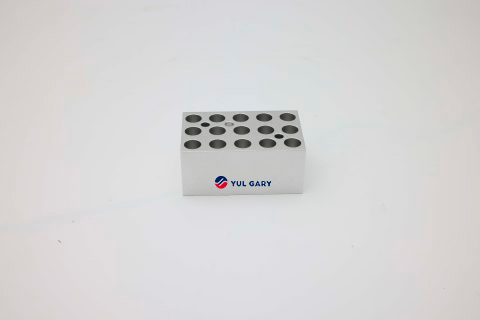

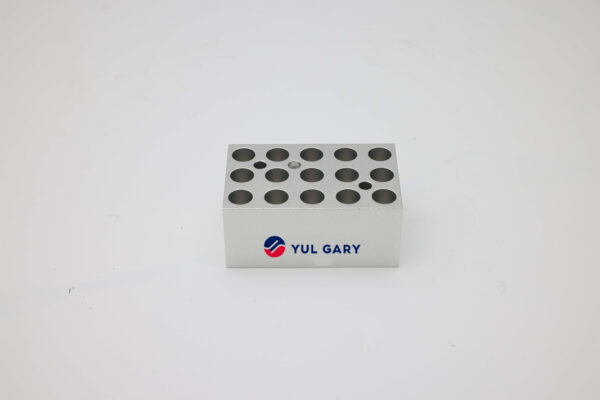

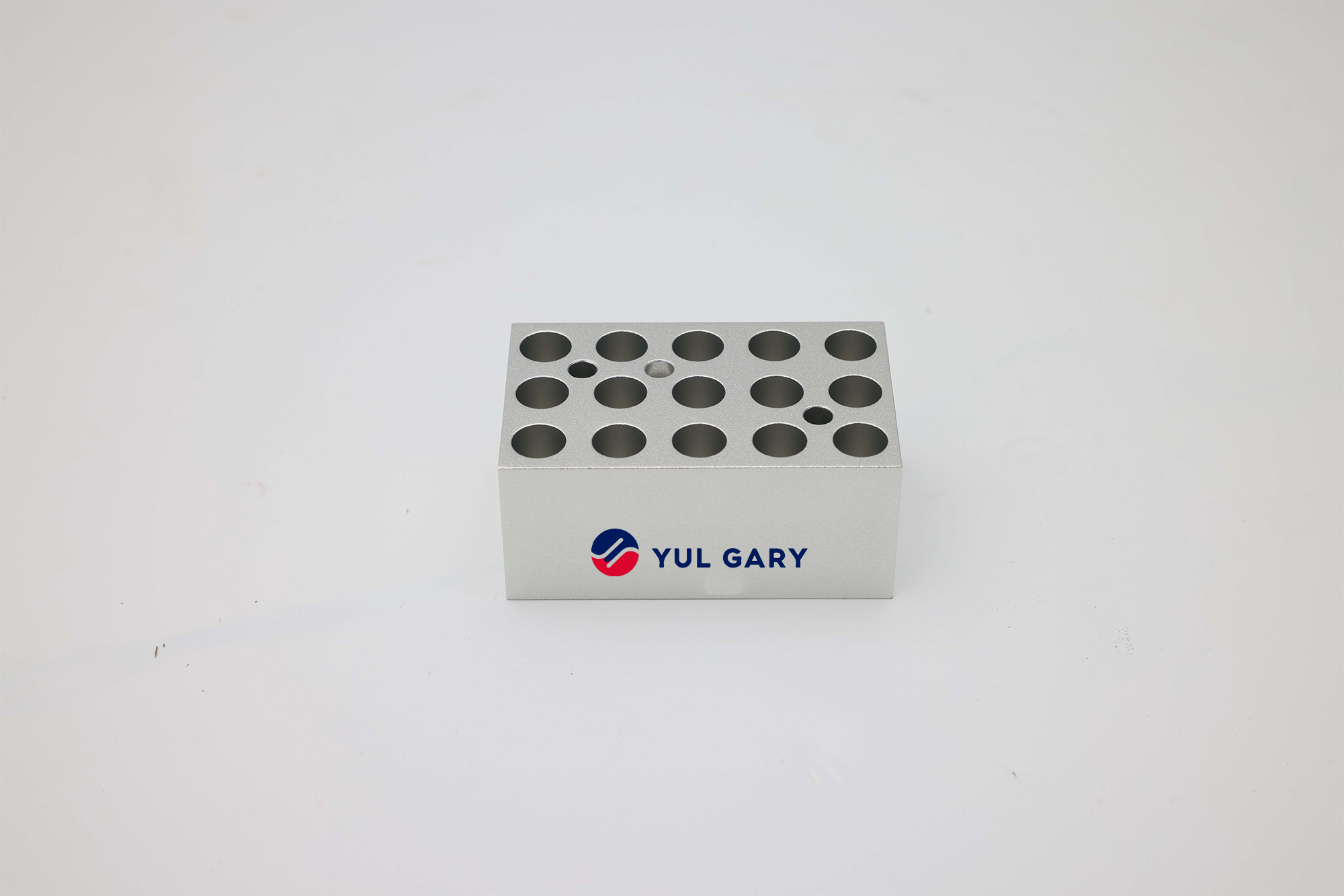

| YG1614-op3 | 1.5ml tube | 15 x 1.5 ml Centrifuge Tube | 12 |
| YG1614-op4 | 2.0ml tube | 15 x2.0 ml Centrifuge Tube | 15 |
| YG1614-op5 | Cuette | 8~12.5 x 12.5 mm (Cuette） | 8 |

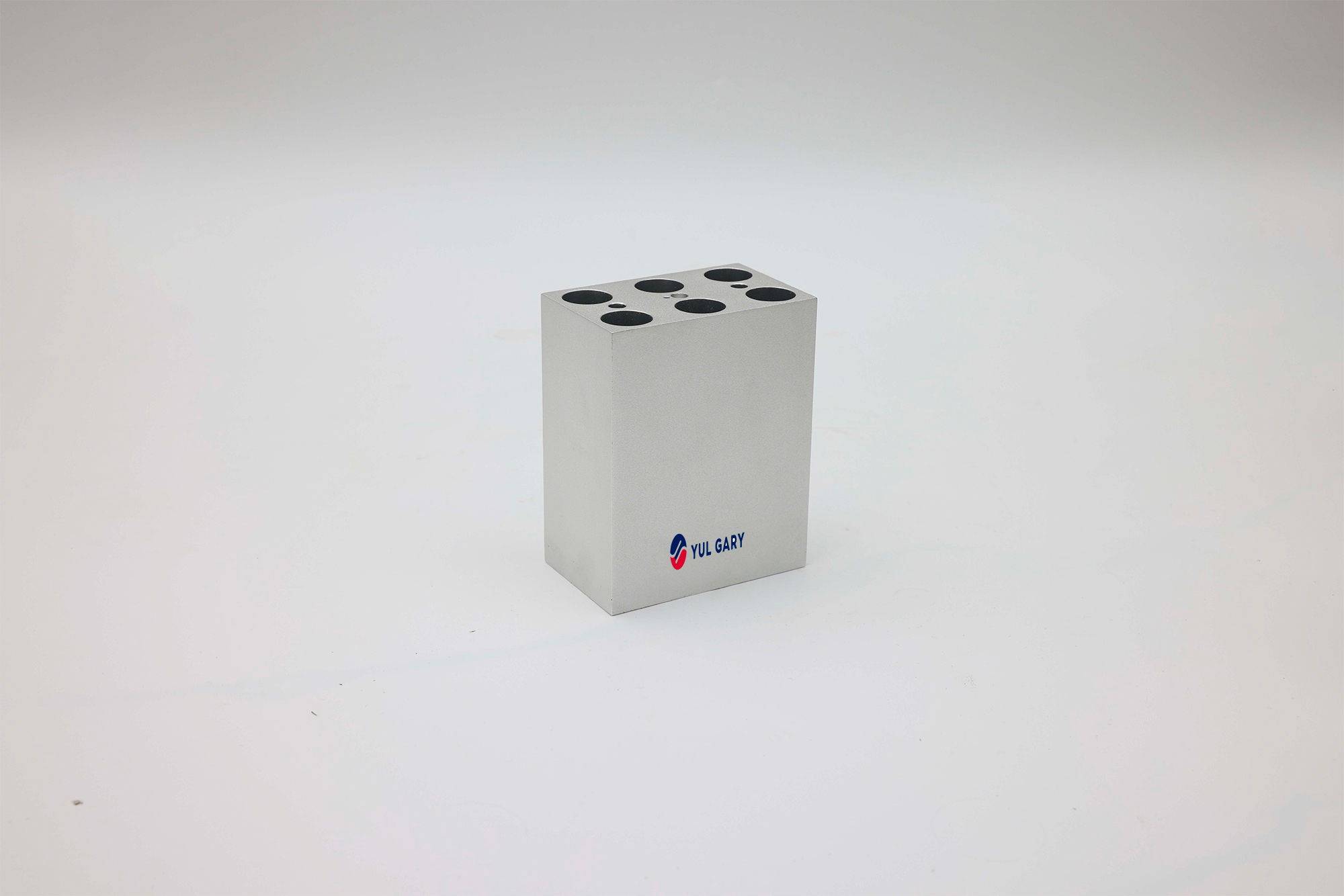

| YG1614-op6 | 15ml tube（Working without lid） | 6 x 15 ml Centrifuge Tube – Open lid when working | 6 |

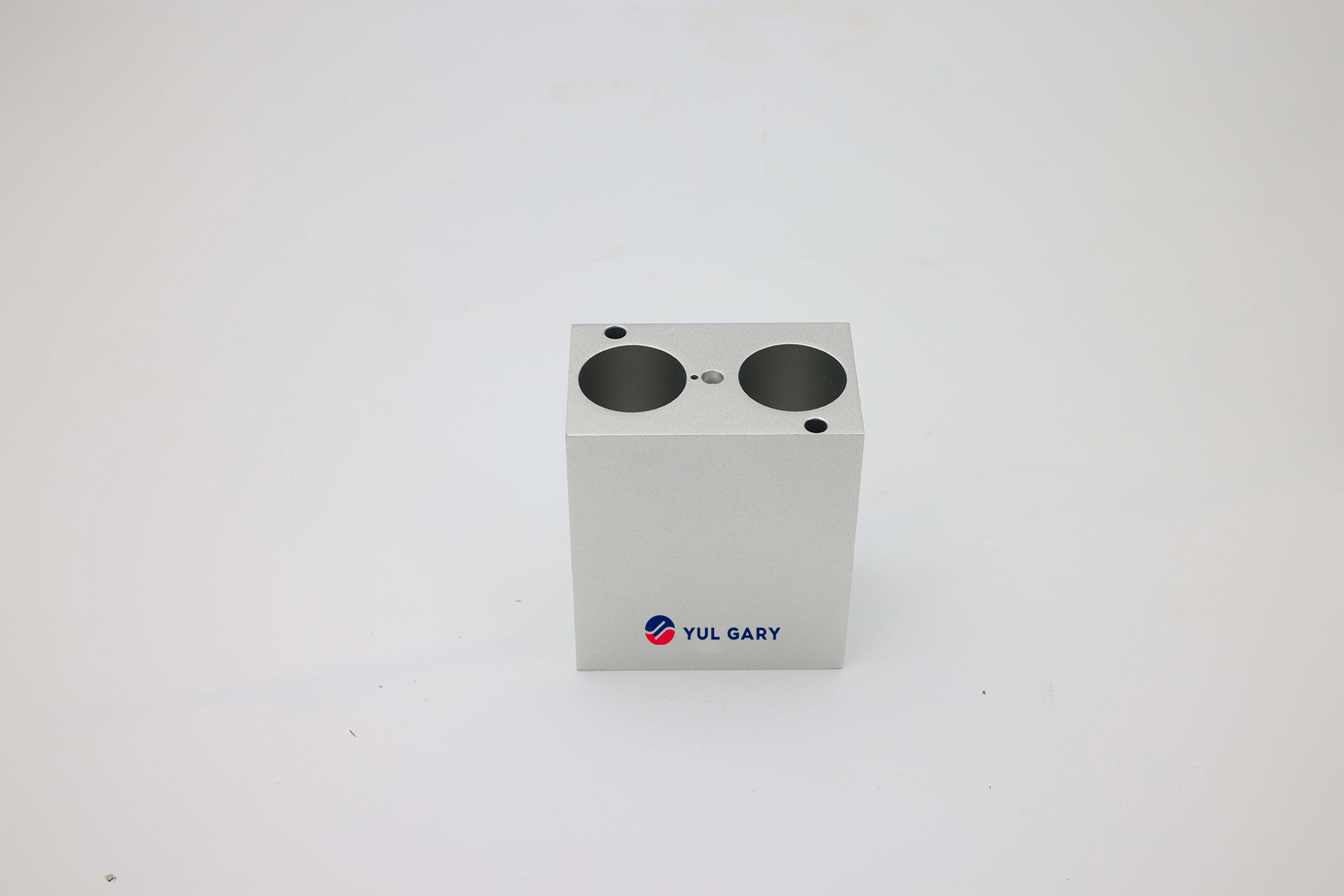

| YG1614-op7 | 50ml tube（Working without lid） | 2 x 50 ml Centrifuge Tube – Open lid when working | 2 |

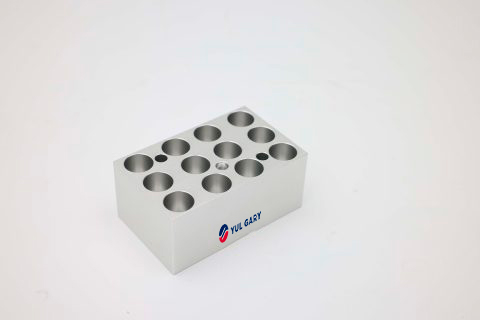

| YG1614-op8 | 5ml tube（Working without lid） | 12 x 5.0ml Centrifuge Tube | 12 |
| YG1614-op9 | Customized | ||
