Description

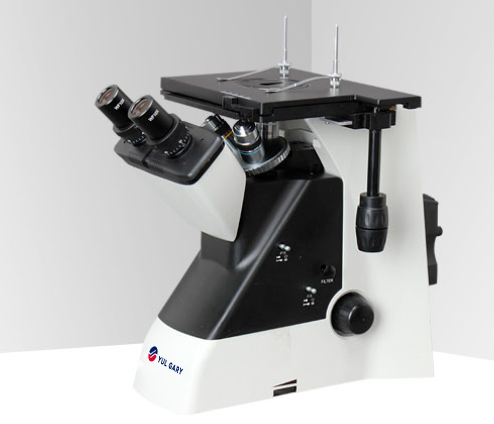

The Metallurgical Microscope YG0670 // YG0671 is an advanced high-resolution optical instrument designed for metallurgical analysis, material inspection, and quality control applications. Featuring a mechanical platform of 180x155mm with a moving range of 40x30mm, this model allows precise sample positioning for detailed structural analysis of metals, alloys, and other solid materials.

Equipped with achromatic and flat-field achromatic objectives (10x, 40x, 50x, and 100x oil immersion), the YG0670 and YG0671 provide sharp, high-contrast images with a magnification range up to 1000x. The coaxial coarse and fine focusing system enables smooth and precise adjustments with a fine-tuning resolution of 0.002mm, ensuring pinpoint accuracy for microscopic evaluations. Additionally, the halogen illumination system (12V/20W) with adjustable brightness enhances visibility and contrast, while the included green, yellow, and color film filters optimize image clarity for different material compositions.

Market Price

The Metallurgical Microscope YG0670 // YG0671 is priced between $1.384 and $1.400USD, depending on the configuration, additional accessories, and optional digital imaging integration. For customized configurations and the best pricing options, users can request a quotation through Kalstein Plus.

Frequently Asked Questions

• What is the difference between the YG0670 and the YG0671 models?
  The YG0670 features a binocular head, while the YG0671 comes with a trinocular head, allowing the integration of a digital camera for imaging and documentation.
• Can this microscope be used for non-metallic materials?
  Yes, while it is optimized for metallurgical analysis, it can also be used for ceramics, composites, and semiconductor materials.
• Does this microscope include a digital camera?
  No, but the YG0671 model is compatible with digital imaging devices and can be equipped with photo adapters and C-Mount connectors.

Advantages and Disadvantages

Advantages:

• High-precision optics with flat-field achromatic objectives for detailed material analysis.
• Mechanical platform with smooth positioning controls for accurate sample adjustments.
• Adjustable halogen illumination system with contrast-enhancing filters.
• Fine focus mechanism (0.002mm resolution) for microstructural investigations.
• Trinocular model (YG0671) supports digital imaging and documentation.

Disadvantages:

• Higher cost compared to standard compound microscopes.
• Requires oil immersion for 100x magnification.
• Not ideal for biological specimen observation.

Field Applications

The Metallurgical Microscope YG0670 // YG0671 is widely used in:

• Metallurgical Research & Material Science – Examining metal microstructures, grain boundaries, and coatings.
• Industrial Quality Control – Detecting defects, porosity, and inclusions in metal samples.
• Electronics & Semiconductor Industry – Analyzing PCB materials, solder joints, and microelectronic components.
• Forensic Investigations – Identifying structural failures, fractures, and wear patterns in materials.
• Engineering & Manufacturing – Ensuring compliance with industry material specifications.

Recommendations for Optimal Performance

• Regularly clean the optical lenses with specialized solutions to maintain image clarity.
• Use appropriate filters to enhance contrast and highlight sample details.
• Ensure proper sample preparation for optimal metallurgical analysis.
• Store the microscope in a dust-free environment to prevent contamination and extend longevity.
