Description

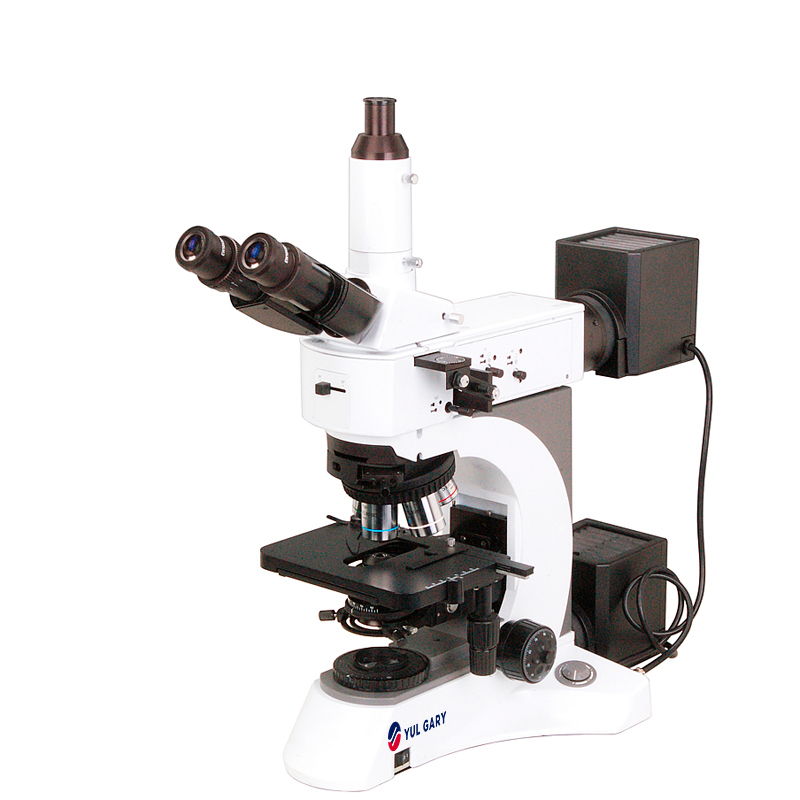

The Metallurgical Microscope YG0668 is a high-precision optical instrument designed for industrial quality control, metallographic analysis, and scientific research. Featuring an infinity optical system with bright field (BF) and dark field (DF) capabilities, this model delivers superior clarity and precision. The optional polarization (PL) and differential interference contrast (DIC) functions enhance contrast and depth perception, making it an ideal tool for detailed surface inspections and metallurgical applications.

Equipped with a Seidentopf trinocular head, inclined at 30° and rotatable 360°, the YG0668 ensures comfortable and ergonomic use over long observation sessions. Its five-hole inward nosepiece with a DIC slot accommodates infinity plan dark field metallurgical objectives, covering a magnification range of 50x to 1000x. The double-layer mechanical stage (186 x 138mm) with a moving range of 74 x 50mm allows precise sample positioning, supporting specimens up to 30mm to 50mm in height. The Kohler illumination system with a 100W halogen light source ensures uniform brightness and exceptional image contrast for both reflected and transmitted light applications.

Market Price

The Metallurgical Microscope YG0668 is available within a price range of $5.921 to $6.000USD, depending on optional upgrades such as DIC and polarization systems. For custom configurations and the best pricing, users can request a personalized quotation through Kalstein Plus.

Frequently Asked Questions

• What is the main advantage of the YG0668 over standard metallurgical microscopes?
  The YG0668 offers both BF and DF observation modes, along with optional polarization and DIC enhancements, making it an exceptionally versatile tool for material science and failure analysis.
• Is this microscope compatible with digital imaging systems?
  Yes, the trinocular head supports C-Mount and photo adapters, allowing seamless integration with high-resolution digital cameras for documentation and analysis.
• Can this microscope be used for industrial applications?
  Absolutely. The YG0668 is specifically designed for metallurgical and materials research, making it ideal for microstructure examination, coatings analysis, and defect detection.

Advantages and Disadvantages

Advantages:

• Infinity optical system with BF/DF capabilities for detailed metallurgical inspections.
• Trinocular design with 360° rotation for flexible observation and imaging.
• Powerful Kohler illumination system (100W halogen) for high-contrast visualization.
• Five-position nosepiece for multiple LWD plan achromatic objectives.
• Optional PL and DIC systems for enhanced contrast and material differentiation.

Disadvantages:

• Higher cost compared to standard optical microscopes.
• DIC and PL systems are optional upgrades, increasing total investment.
• Not suitable for biological applications due to its metallurgical design.

Field Applications

The Metallurgical Microscope YG0668 is widely used in:

• Metallurgy and Material Science – Detailed structural analysis of metals, ceramics, and coatings.
• Industrial Quality Control – Failure analysis and defect detection in industrial components.
• Electronics and Semiconductor Industry – Examination of microelectronics, silicon wafers, and PCBs.
• Forensic Engineering – Investigating fracture patterns and wear analysis in materials.
• Scientific Research – Advanced training in metallography and materials testing.

Recommendations for Optimal Performance

• Regularly clean optical components using high-quality lens-cleaning solutions to maintain imaging precision.
• Use the appropriate contrast mode (BF/DF/PL/DIC) to optimize visibility for specific material types.
• Adjust Kohler illumination properly to ensure uniform brightness and image clarity.
• Store the microscope with a dust cover when not in use to protect optical surfaces.

Technical Specifications
