Description

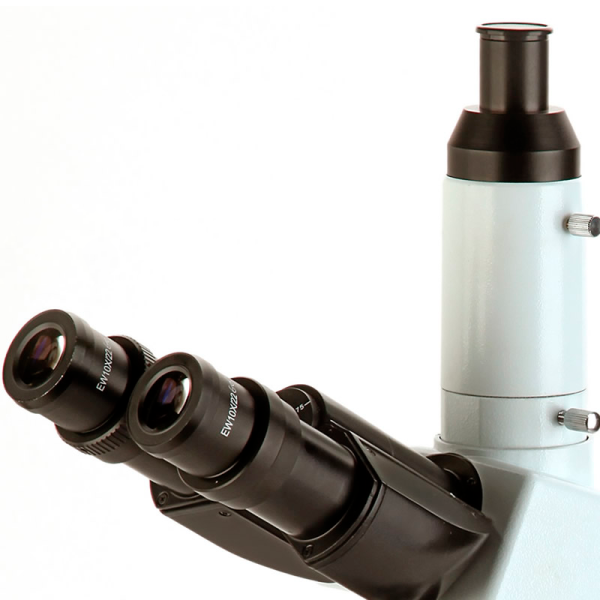

The Metallurgical Microscope YG0667 is an advanced optical instrument designed for industrial inspections and scientific research. Equipped with an infinity optical system, it offers bright field (BF) and dark field (DF) observing modes, with optional upgrades to polarization (PL) and differential interference contrast (DIC) for enhanced analysis capabilities. With a Seidentopf trinocular head that rotates 360° and inclines at 30°, it ensures comfort during prolonged use. The E50:P50 light path splitter allows for easy integration with digital imaging systems, making it ideal for detailed material examination.

Market Price

The Metallurgical Microscope YG0667 is available in the market with a price range of $5,406 to $5,420 USD, depending on the optional accessories like PL and DIC systems. These optional enhancements provide increased functionality for those with specific analytical needs.

Frequently Asked Questions

• What sets the YG0667 microscope apart from standard metallurgical microscopes? The YG0667 offers both BF and DF modes and can be upgraded with PL and DIC options for comprehensive material analysis.
• Is the microscope compatible with imaging systems? Yes, the trinocular head supports C-Mount and photo adapters, integrating seamlessly with digital cameras.
• Can this microscope be used for semiconductor or metal analysis? Absolutely. It is tailored for metallurgical applications, ideal for semiconductor inspection, failure analysis, and metallographic studies.

Advantages and Disadvantages

Advantages:

• Infinity optical system with BF/DF capabilities for precise material examination.
• Trinocular design with 360° rotation ensures flexible observation and imaging.
• Adjustable Kohler illumination system (100W halogen) for high-contrast visualization.

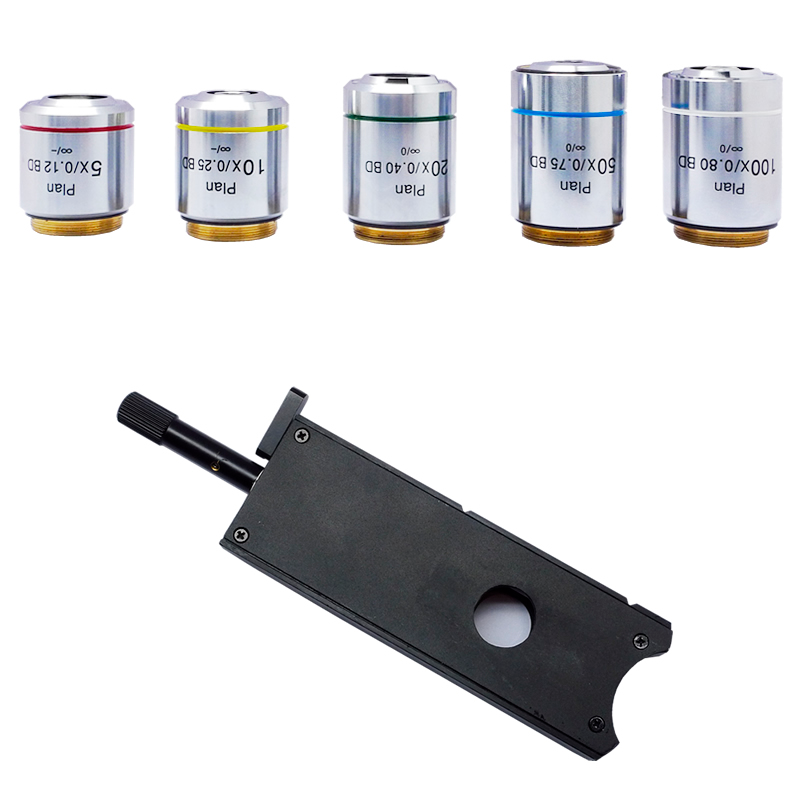

• Five-position nosepiece supports multiple LWD plan achromatic objectives.
• Optional PL and DIC systems for enhanced contrast analysis.

Disadvantages:

• Higher cost compared to standard optical microscopes.
• DIC and PL systems are optional, increasing total investment.
• Not suitable for biological applications due to its metallurgical design.

Field Applications

The Metallurgical Microscope YG0667 is commonly used in:

• Material Science – Metallographic structure analysis, coatings, and composites inspection.
• Industrial Quality Control – Failure analysis and defect inspection in metals, alloys, and ceramics.
• Semiconductor Industry – Microstructure evaluation of silicon wafers and electronic components.
• Forensic Engineering – Examination of fractured materials and wear patterns.
• Academic Research – Advanced microscopy training in material science and engineering.

Recommendations for Optimal Performance

• Regularly clean optical components with lens-cleaning solutions for clarity.
• Use the appropriate lighting mode (BF/DF/PL/DIC) for specific contrast enhancement.
• Properly adjust the Kohler illumination system for optimal brightness and uniformity.
• Protect the microscope with a dust cover when not in use to safeguard optical surfaces.

Features

• Infinity optical system with BF, DF capabilities.
• Seidentopf trinocular head with 360° rotation.
• E50:P50 light path splitter for imaging integration.
• 100W halogen adjustable Kohler illumination.
• Optional PL and DIC systems for advanced analysis.

Technical Specifications
