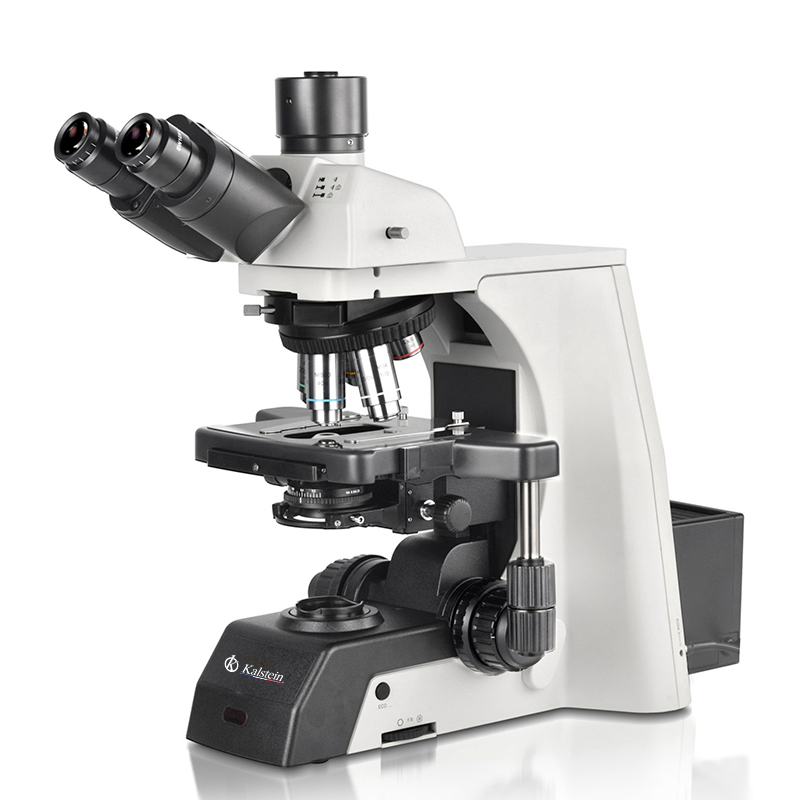

Manual Halogen Laboratory Microscope YG0675A // YG0675C

Description

The Manual Halogen Laboratory Microscope YG0675A // YG0675C stands out as a top-tier precision instrument engineered for an extensive range of applications in scientific laboratories, clinical research, and industrial analysis. It’s equipped with the cutting-edge NIS60 Infinity Optical System that guarantees exceptional image clarity and contrast across several modalities, including brightfield, darkfield, phase contrast, fluorescence, and differential interference contrast (DIC). Designed with user efficiency in focus, it boasts a manual halogen illumination system for precise brightness control, ensuring optimal contrast for detailed observations. The ergonomic Seidentopf binocular/trinocular head, set at a comfortable 30° inclination and adaptable to various interpupillary distances, facilitates both routine lab work and complex analysis seamlessly.

Market Price

The Manual Halogen Laboratory Microscope YG0675A // YG0675C is available in the market with a price range varying from $6,999 to $29,956, depending on the optional features and custom configurations chosen by the user.

Frequently Asked Questions

What is the main difference between YG0675A and YG0675C? The YG0675A is a manual model featuring halogen illumination, whereas the YG0675C is equipped for semi-automated configurations with motorized components and LED lighting.
Can this microscope be upgraded with a fluorescence module? Yes, the YG0675 series supports fluorescence and phase contrast modules, making it adaptable to various laboratory needs.
Is the YG0675C compatible with digital imaging? Certainly, the trinocular model includes a C-Mount adapter for integration with high-resolution digital cameras, aiding in effective documentation and image processing.

Advantages and Disadvantages

Advantages:

Advanced optical system for high-resolution imaging.
Customizable configurations for diverse research applications.
Robust mechanical stage for efficient sample handling.
Comfortable high-eyepoint eyepieces for a better viewing experience.
Compatible with digital imaging through C-Mount adapters.

Disadvantages:

Higher price compared to basic laboratory microscopes.
Manual settings demand skilled personnel for adjustments.
Fluorescence and DIC modules require additional investment.

Field Applications

The Manual Halogen Laboratory Microscope YG0675A // YG0675C is extensively employed in:

Biomedical Research – Cell analysis, tissue examination, and histopathology.
Clinical Diagnostics – Microbiology, hematology, and disease diagnostics.
Material Science – Industrial quality control, metallurgical analysis, and defect detection.
Forensic Investigations – Fiber analysis, toxicology, and forensic evidence examination.
Academic Institutions – Teaching and research in universities and laboratories.

Recommendations for Optimal Performance

Use high-quality immersion oil for 100x magnification.
Regularly clean optical components to ensure image clarity.
Adjust illumination settings for optimal contrast and sample viewing.
Store the microscope in a dust-free environment to maintain optical integrity.

Technical Specifications

Full Auto Motorized Research Level Scientific Laboratory Microscope		Accessory Number	YG0675A	YG0675B	YG0675C
Optical System	NIS60 Infinity Optical System		●	●	●
Observation Method	Bright Field		●	●	●
	Dark Field		○	○	○
	Polarizing		○	○	○
	Phase Contrast		○	○	○
	Fluorescent		○	○	○
	DIC		○	○	○
Main Body	Manual Body + Halogen Illumination.	YG0675C-op1	●	–	–
	Manual Body + LED Illumination.	YG0675C-op2	●	–	–
	Semi-Auto Body + Halogen Illumination.	YG0675C-op3	–	●	–
	Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	YG0675C-op3	–	●	–
	Semi-Auto Body + LED Illumination.	YG0675C-op4	–	●	–
	Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	YG0675C-op4	–	●	–
	Full Auto Body + LED Illumination.	YG0675C-op5	–	–	●
	Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage + Touch LCD Screen	YG0675C-op5	–	–	●
Head	Seidentopf Binocular Head, Inclined 30°	YG0675C-op6	○	○	○
	Interpupillary Distance 47-78mm	YG0675C-op6	○	○	○
	Seidentopf Trinocular Head, Inclined 30°	YG0675C-op7	●	○	●
	Interpupillary Distance 47-78mm	YG0675C-op7
	3 Level Light Split Switch E100:P0/E20:P80/E0:P100	YG0675C-op8

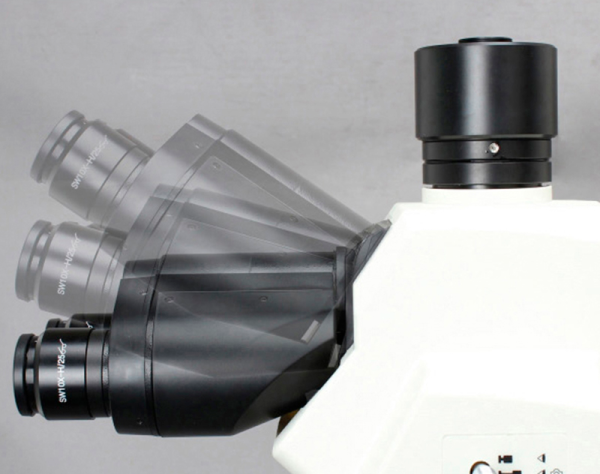

	Ergo Tilting Trinocular Head, Inclination 0°~35°	YG0675C-op8	○	●	○
	Interpupillary Distance 47-78mm	YG0675C-op9
	3 Level Light Split Switch E100:P0/E20:P80/E0:P100	YG0675C-op9
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YG0675C-op10	●●	●●	●●
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YG0675C-op11	○	○	○
	EW12.5x/16mm, High Eyepoint	YG0675C-op12	○	○	○
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YG0675C-op13	○	○	○
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YG0675C-op14	○	○	○
Nosepiece	Manual Nosepiece, Quintuple, Backward, Center Adjustable	YG0675C-op15	○	○	○
	Manual Nosepiece, Sextuple, Backward	YG0675C-op16	●	–	–
	Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust	YG0675C-op17	○	–	–
	Auto Coded Nosepiece, Sextuple, Backward	YG0675C-op18	○	●	●

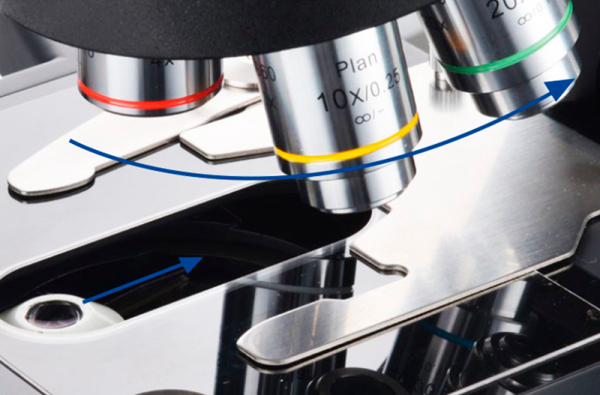

	Motorized Switch Objectives, Controlled By:
	1. Shortcut Button On Right Side Of Base, Can Switch 2 Pre-set Objectives Quickly

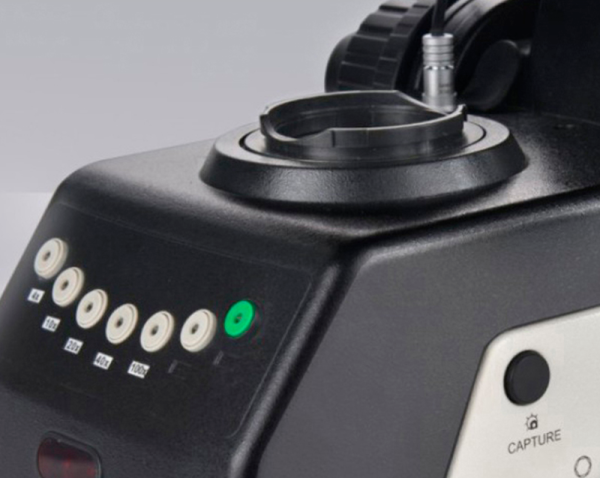

	2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objectives, Press Green Button Can Swap Between Them
	With Slot For Polarizing Compensator Slider Or DIC Slider		●	●	●
	Protect Cover For Nosepiece Holes	YG0675C-op19	●	●	●

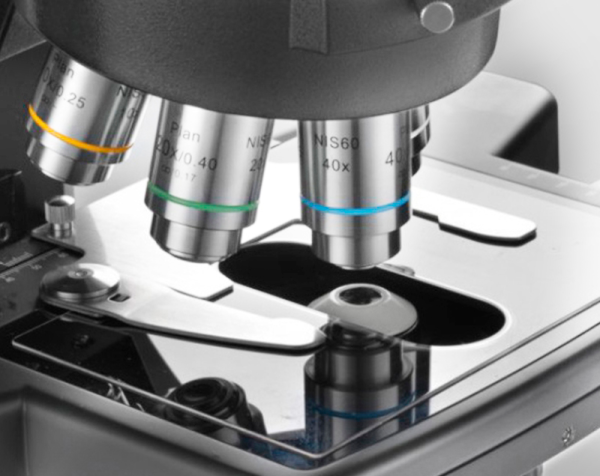

NIS60	2x/0.06, W.D.7.5mm, Cover Glass 0.17mm	YG0675C-op20	○	○	○
N-PLN	4x/0.10, W.D.30mm, Cover Glass 0.17mm	YG0675C-op21	●	●	●
Infinity Plan Objective	10x/0.25, W.D.10.2mm, Cover Glass 0.17mm	YG0675C-op22	●	●	●
	20x/0.40, W.D.12mm, Cover Glass 0.17mm	YG0675C-op23	●	●	●
	40x/0.65, W.D.0.7mm, Cover Glass 0.17mm	YG0675C-op24	●	●	●
	50x/0.95(Oil), W.D.0.19mm, Cover Glass 0.17mm	YG0675C-op25	○	○	○
	60x/0.8, W.D.0.3mm, Cover Glass 0.17mm	YG0675C-op26	○	○	○
	100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm	YG0675C-op27	●	●	●
NIS60APO Infinity Plan	20x/0.75, W.D.1.1mm, Cover Glass 0.17mm	YG0675C-op28	○	○	○
NIS60APO Infinity Plan	100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm	YG0675C-op29	○	○	○
Working Stage	Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Left Handle	YG0675C-op30	○	–	○
	Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Right Handle	YG0675C-op31	●	–	○
	Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Left Handle	YG0675C-op32	–	○	○
	Double Layer Mechanical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Right Handle	YG0675C-op33	–	●	○
	Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw	–	●	●	–
	Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick,	YG0675C-op34	○	○	●
	–Travel Range X:125mm, Y:75mm,
	–Minimum Step 0.1um
	–Re-Position Accurate +/-1.5um
	–Max Speed 25mm/s
	–Size: 275x239x44.5mm
	–Soft Stop, Mechanical Stop, Opto-Electro Switch Stop
	–Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um
	–Z Axis Max Speed 10r/s
	–3D Control Stick, 4 Speeds
	–Connection By USB2.0 & RS232
	–Communication Speed 9600 bits
	Z Axis Upgrade With Optical Grating Ruler	YG0675C-op35	○	○	○
Condenser	Swing-Out Condenser NA0.9/0.25	YG0675C-op36	●	–	–
Condenser	Auto Swing-Out Condenser NA0.9/0.25	YG0675C-op37		●	–

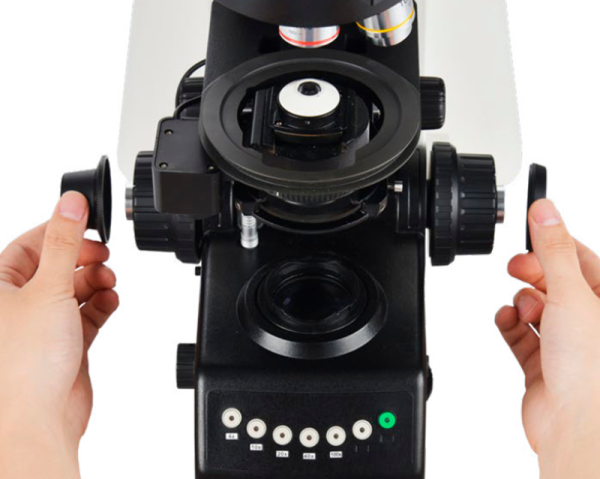

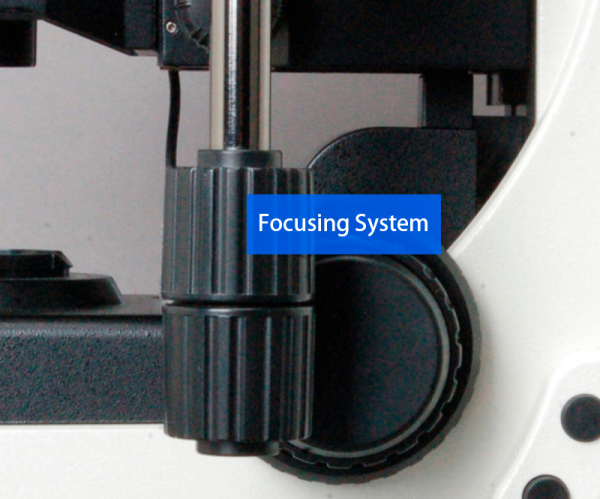

Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Right	–	●	●	●
Light Source	Transmit Kohler Illumination, Brightness Adjustable,	YG0675C-op38	●	●
	12V100W Halogen, External Lamp House	YG0675C-op38	●	●
	Transmit Kohler Illumination, Brightness Adjustable,	YG0675C-op39			●
	3W S-LED, Built-in Main Body	YG0675C-op39			●
	ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	YG0675C-op40	●	●	●
	Auto Brightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected	YG0675C-op41	○	●	●
	(To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time)	YG0675C-op41	○	●	●
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	YG0675C-op42	●	●	●
	Filter LBD	YG0675C-op43	●	●	●
	Filter Green	YG0675C-op44	●	●	●
	Filter Yellow	YG0675C-op45	●	●	●
	Filter ND6	YG0675C-op46	●	●	●
	Filter ND25	YG0675C-op47	●	●	●
Adapter	Eyepiece Adapter Dia.23.2mm	YG0675C-op48	○	○	○
	C-Mount 1.0x	YG0675C-op49	○	○	○
	C-Mount 0.5x	YG0675C-op50	○	○	○
Software	NOMIS Basic Image Processing Software	YG0675C-op51	○	○	○
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry	YG0675C-op52	○	○	○
	Dark Field Condenser, N.A. 1.25~1.36, Immersion	YG0675C-op53	○	○	○
	Dark Field Objective, Infinity Plan 100X,	YG0675C-op54	○	○	○
	For Immersion Dark Field Observation	YG0675C-op54	○	○	○
	Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm,	YG0675C-op55	○	○	○
	For Immersion Dark Field Observation	YG0675C-op55	○	○	○
Polarizing	Polarizer For Transmit Light Source, Swing-Out, On Collector	YG0675C-op56	○	○	○
	Analyzer For Transmit Light, Slide With Quartz Wedge Compensator	YG0675C-op57	○	○	○
	Professional Polarizing Microscope	YG0675C-op58	○		○
Phase Contrast	Turret Phase Contrast Condenser, Center Adjustable	YG0675C-op59	○	○	○
	Centering Telescope 10x	YG0675C-op60	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25	YG0675C-op61	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40	YG0675C-op62	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65	YG0675C-op63	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil)	YG0675C-op64	○	○	○
DIC	Polarizer For Transmit Light Source	YG0675C-op65	○	○	○
	Turret DIC Condenser	YG0675C-op66	○	○	○
	DIC Slide 10x, Used With Semi-APO Fluorescent Objective	YG0675C-op67	○	○	○
	DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective	YG0675C-op68	○	○	○
	DIC Slide 100x, Used With Semi-APO Fluorescent Objective	YG0675C-op69	○	○	○
	DIC Slide With Analyzer 10x-20x	YG0675C-op70	○	○	○
	DIC Slide With Analyzer 40x-100x	YG0675C-op71	○	○	○
NIS60 N-PLFN	4x/0.13, W.D.16.5, Cover Glass 0.17mm	YG0675C-op72	○	○	○
Semi-APO	10x/0.3, W.D.8.1, Cover Glass 0.17mm	YG0675C-op73	○	○	○
Fluorescent	20x/0.5, W.D.2.1, Cover Glass 0.17mm	YG0675C-op74	○	○	○
Objective	40x/0.75, W.D.0.7, Cover Glass 0.17mm	YG0675C-op75	○	○	○
For DIC	100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil	YG0675C-op76	○	○	○
Fluorescent	Fluorescent Microscope	YG0675C-op77	–	○	○
Other Accessories	Working Stage Holder Bracket	YG0675C-op78	●	●	●
	Adapter To Adjust Eye Position	YG0675C-op79	○	○	○

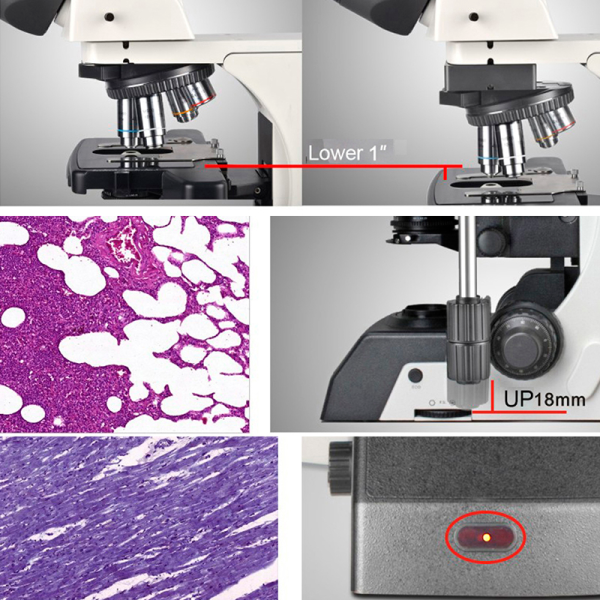

	Adapter To Lower The Stage Position 1″	YG0675C-op80	○	○	○
	Immersion Oil	YG0675C-op81	●	●	●
	Allen Wrench	YG0675C-op82	●	●	●
	Power Cord	YG0675C-op83	●	●	●
	Short Eye Cover, For Eyepiece	YG0675C-op84	○	○	○
	Long Eye Cover, For Eyepiece	YG0675C-op85	○	○	○
	Eyepiece Micrometer, Cross	YG0675C-op86	○	○	○
	Adapter Ring To Install Eyepiece Micrometer	YG0675C-op87	○	○	○
	USB Cable	YG0675C-op88	○	○	○
Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable

Additional information

Weight	24 kg
Model	YG0675A, YG0675B, YG0675C
