Description

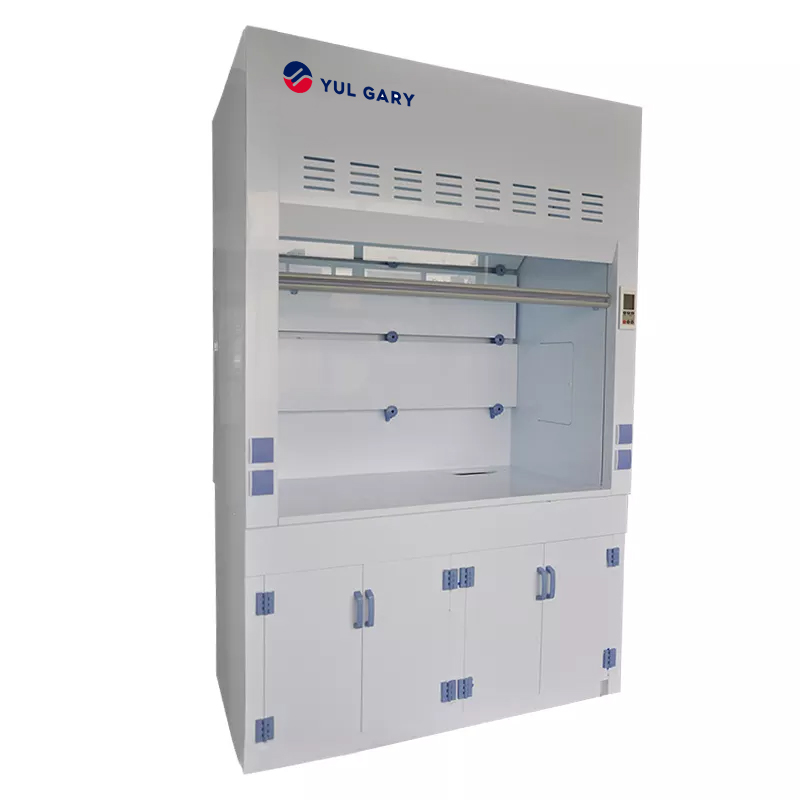

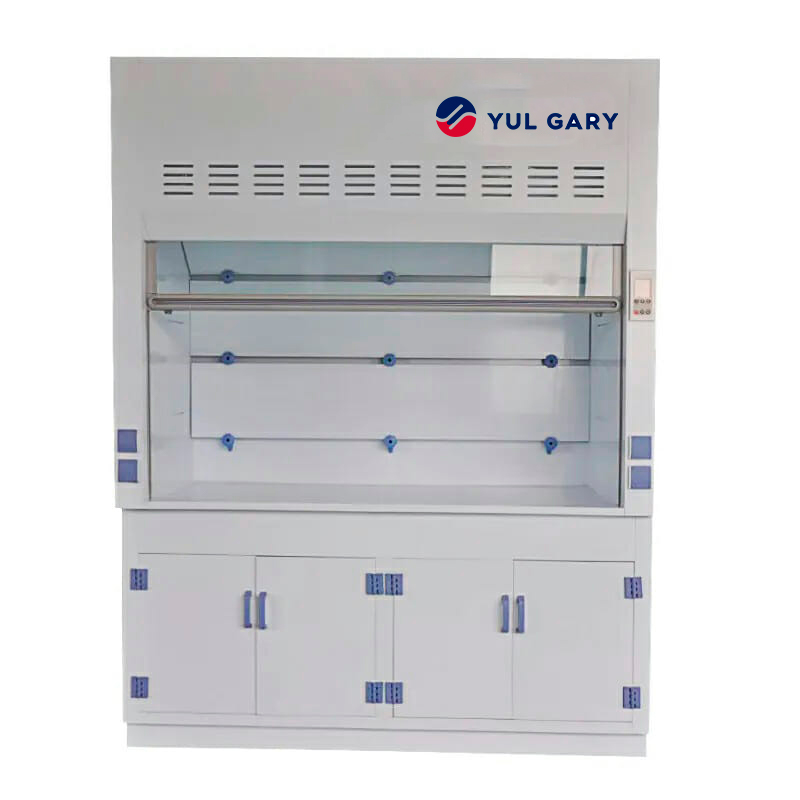

The Laboratory Ventilation Cleaning Fume Extraction System Hood Equipment Fume Hood YG0203 // YG0205 represents an advanced solution for laboratory environments, designed to efficiently extract fumes and harmful particles. Featuring an integrated axial flow fan and a ⊄250 mm exhaust duct, this unit ensures optimal airflow, maintaining a safe and controlled environment. Its construction from 8.0 mm polypropylene (PP) plate offers excellent resistance to acidic and alkaline corrosion, while the sliding tempered glass window and LCD control panel facilitate safe and simple operation.
Market Price
The YG0203 // YG0205 Fume Hood is available in the market with a price range starting from approximately $2,300 to $3,100, depending on the specific model and added features. This investment reflects not only the high-quality materials utilized but also the incorporation of advanced technology, making it a strategic choice for laboratories aiming to meet rigorous safety and operational standards.
Frequently Asked Questions
- Is the YG0203 // YG0205 Fume Hood easy to operate? Yes, it features an intuitive LCD control panel for straightforward airflow regulation and operational control.
- What types of protection does this fume hood offer? It provides comprehensive protection against toxic fumes and vapors, thanks to its robust exhaust system and corrosion-resistant materials.
- What are the key technical specifications? It offers a face velocity of 0.4—0.6m/s and a noise level below 60dB, with a durable 5 mm thick tempered glass window.
Advantages and Disadvantages
The fume hood is praised for its solid, durable construction, low noise level, and adaptability to various chemical substances due to its adjustable extraction speed. The tempered glass window offers additional protection. A potential drawback could be its higher cost compared to other fume hoods, which might be concerning for laboratories operating on limited budgets.
Field Use
Ideally suited for research laboratories, chemical and pharmaceutical industries, and educational institutions, this equipment maintains a safe working environment by effectively extracting toxic fumes. Its compact, ergonomic design fits well in confined workspaces, and its straightforward maintenance ensures long-term reliable operation.
Recommendations
To ensure the long-term performance of the YG0203 // YG0205 Fume Hood, regular maintenance is recommended. This includes cleaning the exhaust system, monitoring the fan, and checking window controls. It’s also crucial to operate the fume hood within stipulated parameters, such as airflow speed, to maintain optimal functionality and extend its lifespan.
Features
- Corrosion-resistant construction made of 8.0 mm polypropylene (PP)
- Integrated axial flow fan and ⊄250 mm exhaust duct
- LCD control panel for easy operation
- 5 mm tempered glass window for safety
- Adjustable extraction speed for various chemical substances
Technical Specifications
| Model | YG0203 | YG0204 | YG0205 |
| Notes Above size is our standard item. Dimension can be customized upon customer’s request. Built-in axial flow blower and⊄250mm exhaust duct included. |
|||
| Housing | Using 8.0mm PP polypropylene plate welding production, after carving, bending the entire cabinet at one time, featured with strong anti-acid and alkali, corrosion resistance. | ||
| Inner shell | Using a new 8.0mm PP polypropylene plate welding production, with strong anti-acid and alkali, corrosion resistance characteristic, the inner side board can be fixed with water cock, gas cock. The back plate can be fixed with baffle, roof lighting and gas hood device. | ||
| Operational worktop | 8.0mm PP polypropylene worktop, includes water fender, spray-proof, the table has a good performance of waterproof, anti-acid and alkali. | ||
| Baffle | 8.0mm PP polypropylene board, resistant to strong acid and alkali. Installed in the back of the work space and above, including at least three pieces plates, so that the work space and the connection between the exhaust pipe to form a gas chamber, the polluted gas are exhausted completely, the baffle plate is attached to the cabinet with the clips, detachable. | ||
| Gas hood | PP material, with a strong corrosion resistance, rectangular opening at the bottom of the entrance, circular opening at the top | ||
| Fluorescent lamp | 1 piece 30W light (waterproof, anti-corrosion, anti-oxidation) | ||
| Window sliding door | Movable vertical pull-up door, placed between the work space and the operator to protect the operator’s safety, combined with the balance position, sliding doors can be stopped at any point of activity. a piece of tempered glass window on the adjustable door, the field of view can be completely clear. | ||
| Window | Using 5mm thick tempered glass | ||
| Window frame | Aluminum alloy door frame, ensure the safety and durability of the window | ||
| Windows Suspension Cable | Plastic suspension cable, low noise, fast pulling speed, strong balance characteristic | ||
| Control switch | LCD control panel, set with the power, switches, lighting, fan and running lights and other buttons, the LCD screen can clearly show the operation of the fume hood. | ||
| Socket | Equipped with four 220V universal socket. (Other type of socket can be optional, according to customers need) | ||

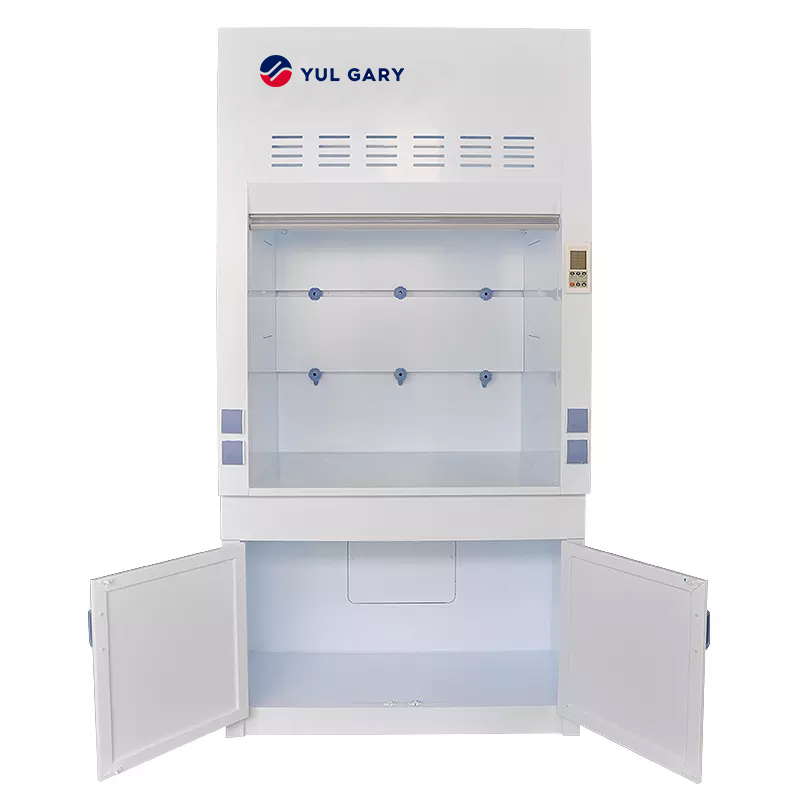

| Base cabinet | 8.0mm PP polypropylene board, the door is firm solid, not easy to deformation, elegant appearance | ||
| Door handle | Laboratory PP handle, strong corrosion resistance. | ||
| Hinge | Laboratory PP hinge, strong corrosion resistance. | ||
| Water sink | PP cup , made of high-density PP ,strong corrosion resistance, with filtering and anti-odor function, water trap with high-density PP production( This is extra option) | ||
| Water cock | wall-mount remote control water valve, faucet, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; Ceramic valve core, 90 ° rotation, life span 500,000 times, static maximum resistance Pressure 20 bar; switch knob for high-density PP production, ergonomic design, feel comfortable. (This is extra option) | ||
| Gas cock | Wall-mount remote control gas valve, the main body is made of the thick copper, the surface with high brightness epoxy resin coating, corrosion resistance, heat resistance; ergonomic design, feel comfortable. (This is extra option) | ||
| Optional Accessories | |||
| Air Velocity /Exhaust air volume requiremen | 0.4m/sec~0.6 m/sec. | ||
| Noise | ≤60dB | ||
| Blower | PP centrifugal energy-saving fan, fan motor 380V three-phase motor, fan material PP polypropylene, with high strength, light weight, not easy to aging, low noise, excellent corrosion resistance and so on. (According to the actual need, equip with the fan, duct, etc., the fume hood price does not include the fan ,duct and related accessories prices. | ||
| Dimension (L x W x H) (mm) |
1200 x 850 x 2350 | 1500 x 850 x 2350 | 1800 x 850 x 2350 |
| Weight (Kg) | 220 | 280 | 350 |
