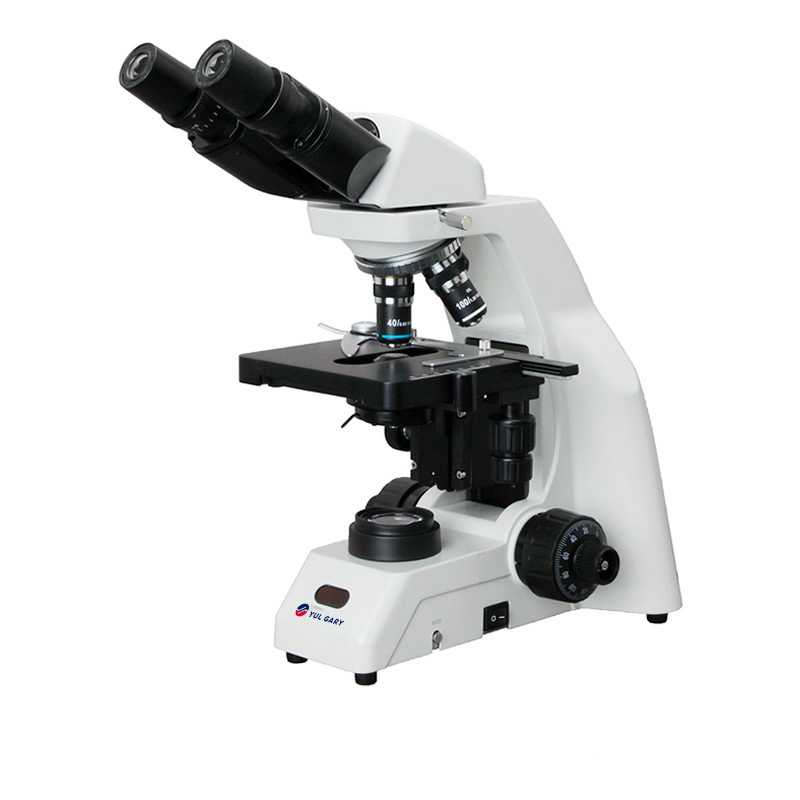

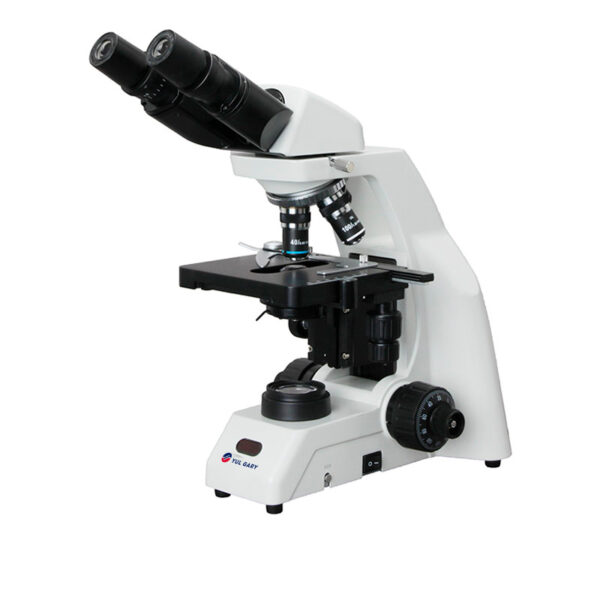

Laboratory Microscope YG0653 // YG0654-1

Description

The Laboratory Microscope YG0653 // YG0654-1 is a versatile and high-precision optical device, ideal for biological research, clinical diagnostics, and educational purposes. Designed with a finite optical system, this model ensures sharp imaging and excellent contrast, making it a valuable tool for laboratories requiring accurate microscopic analysis.

Equipped with Seidentopf binocular and trinocular viewing heads, inclined at 30° with an adjustable interpupillary distance (47-78mm), the YG0653 and YG0654 models provide ergonomic and comfortable viewing. The WF10X/18 eyepieces offer a wide field of view, enhancing image clarity and observation efficiency.

Featuring a backward quadruple nosepiece, this microscope supports achromatic objectives (4x, 10x, 40x, 100x), ensuring precise magnification for a variety of applications. The coaxial coarse and fine focusing system allows for highly accurate sample adjustments, with a fine division of 0.002mm and a moving range of 25mm.

Market Price

The Laboratory Microscope YG0653 // YG0654-1 is available within a price range of $560 to $680 USD, depending on the selected configuration and additional accessories. Bulk discounts are available for institutional and laboratory purchases.

Frequently Asked Questions

What is the difference between the YG0653 and YG0654 models?
The YG0653 series features binocular and trinocular viewing heads, while the YG0654 series includes models with digital viewing heads, providing integrated imaging capabilities.
Does this microscope support dark field microscopy?
Yes, an optional dark field condenser (dry or oil) is available for advanced imaging applications.
Can this model be upgraded for fluorescence microscopy?
Yes, the fluorescence illumination kit (100W HBO lamp or LED) can be integrated into the microscope.
Is this microscope suitable for phase contrast analysis?
Yes, an optional phase contrast kit is available, making it ideal for cell biology and microbiology studies.

Advantages and Disadvantages

Advantages:

High-precision optical system for detailed imaging.
Seidentopf binocular/trinocular viewing heads for ergonomic observation.
Coaxial coarse and fine focusing system for precise sample adjustments.
S-LED illumination with brightness control for consistent lighting.
ECO function in the YG0654-1 model for energy efficiency.

Disadvantages:

Dark field condenser and fluorescence kit are optional and require additional investment.
Digital viewing heads (5M pixels, LCD screen) are not included in base models.

Field Applications

The Laboratory Microscope YG0653 // YG0654-1 is widely used in:

Medical and Clinical Research – Suitable for pathology, hematology, and microbiology studies.
Educational and Training Laboratories – Ideal for academic institutions and research centers.
Pharmaceutical and Industrial Analysis – Used in material inspections and quality control.
Forensic and Environmental Studies – Applied in trace evidence analysis and water microbiology.

This model offers high flexibility and precision, making it a top choice for laboratories requiring reliable microscopy solutions.

Recommendations

Regularly clean the optical lenses to maintain imaging clarity.
Use high-quality immersion oil for 100x objective observations.
Adjust the LED brightness for optimal contrast and image detail.
Consider additional accessories like phase contrast or dark field condensers to enhance imaging capabilities.
Upgrade to a trinocular or digital viewing head for integrated imaging and documentation.

Technical specifications

Model		YG0653	YG0653-1	YG0654	YG0654-1
Optical System	Finite Optical System
Eyepiece	WF10X/18
Viewing Head	Monocular Head Inclined at 30°	○	○	○	○
	Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm	●		●
	Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm		●		●
	Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi	○	○	○	○
	Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, 8″LCD. Android OS	○	○	○	○
Achromatic Objective	4X N.A=0.1 WD=37.5	●	●	●	●
	10X N.A=0.25 WD=7.316	●	●	●	●
	20X N.A=0.4 WD=13	○	○	○	○
	40X N.A=0.65 WD=0.632	●	●	●	●
	100X N.A=1.25 WD=0.198	●	●	●	●
Nosepiece	Backward Quadruple Nosepiece	●	●	●	●
Stage	Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm
Condenser	NA1.25 Abbe Condenser	●	●	●	●
Condenser	Dark Field Condenser (Dry, Oil)	○	○	○	○
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm
Illumination	Halogen Lamp 6V/20W	○	○	○	○
	S-LED Illumination	●	●	●	●
	S-LED Illumination with Recharger	○	○	○	○
	Kohler Illumination	○	○	○	○

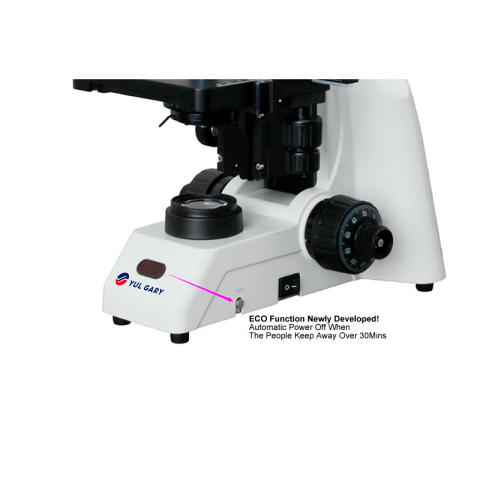

	ECO Function (Auto Power Off After 30 Mins No Operation)	○	○	●	●
	Plane-concave Mirror	○	○	○	○
Fluorescent Attachment	Fluorescent Illumination, LED Lamp	○	○	○	○
Fluorescent Attachment	Fluorescent Illumination, 100W HBOLamp	○	○	○	○
Polarzation Set		○	○	○	○
Phase Contrast Kit		○	○	○	○

Additional information

Weight	50 kg
Model	YG0653, YG0653-1, YG0654, YG0654-1
