Description

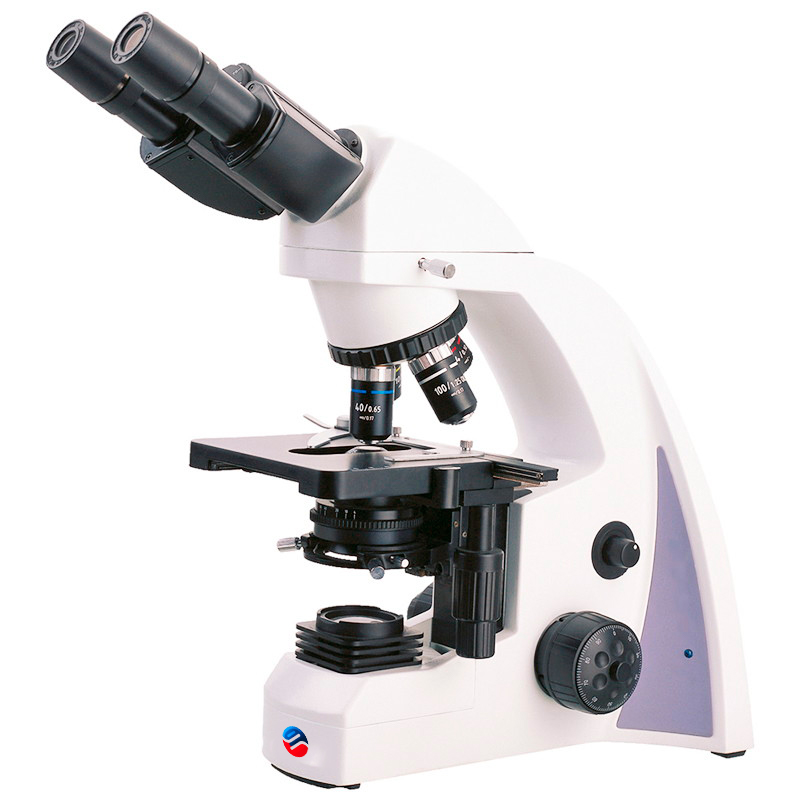

The Laboratory Microscope YG0652 is a state-of-the-art optical instrument designed for high-demand laboratory environments. It features an advanced Infinity Semi-Plan Achromatic Objective system, providing sharp and high-contrast images crucial for biological and medical studies. The ergonomic Seidentopf Binocular Head ensures comfort during prolonged usage, while WF10x/18mm wide-field eyepieces enhance visual clarity. Its backward quadruple nosepiece accommodates 4x, 10x, 40x, and 100x objectives, offering seamless magnification transitions. These features make the YG0652 a top-tier choice for clinical, research, and educational settings.
Market Price
The Laboratory Microscope YG0652 is priced between $996 and $1030 USD, offering competitive pricing based on configuration options and additional features. This flexibility ensures that laboratories and institutions can tailor purchases according to their specific needs and budget, enhancing accessibility to high-performance microscopy.
Frequently Asked Questions
- What is the difference between the YG0652 and YG0652-1 models? The YG0652 model is equipped with a binocular head, while the YG0652-1 features a trinocular head, allowing for digital imaging integration.
- Can this microscope be used for fluorescence microscopy? Yes, with the optional LED EPI-Fluorescent Kit, it supports specialized fluorescent imaging applications.
- Is this microscope suitable for dark field observation? Yes, it can be upgraded with optional Dark Field Condensers for enhanced dark field microscopy.
- Can the illumination be adjusted? Yes, the S-LED illumination system allows users to control brightness for optimal visibility.
Advantages and Disadvantages
Advantages:
- High-resolution imaging with Infinity Semi-Plan Achromatic Objectives.
- Ergonomic Binocular/Trinocular Head for comfortable viewing.
- Coaxial coarse and fine focusing knobs for precise adjustments.
- Adjustable LED illumination for optimal lighting conditions.
- Upgradable with dark field, phase contrast, and fluorescence kits.
Disadvantages:
- Requires additional accessories for advanced imaging applications.
- Higher price range compared to basic laboratory microscopes.
Field Applications
The Laboratory Microscope YG0652 is suitable for:
- Medical and Clinical Diagnostics – Used in pathology, histology, and microbiology.
- Educational and Research Laboratories – Ideal for academic training and biological research.
- Industrial and Pharmaceutical Analysis – Supports material inspections and quality control.
- Forensic and Environmental Studies – Applied in trace evidence and microbial analysis.
Recommendations
- Regularly clean the optical lenses to maintain clarity and precision.
- Ensure proper alignment of the illumination system for uniform brightness.
- Use high-quality immersion oil when working with the 100x objective.
- Consider adding a camera adapter for digital documentation and live imaging.
- Upgrade with optional accessories like dark field and fluorescence kits for extended functionality.
Technical Specifications
| Model | YG0652 | YG0652-1 | |

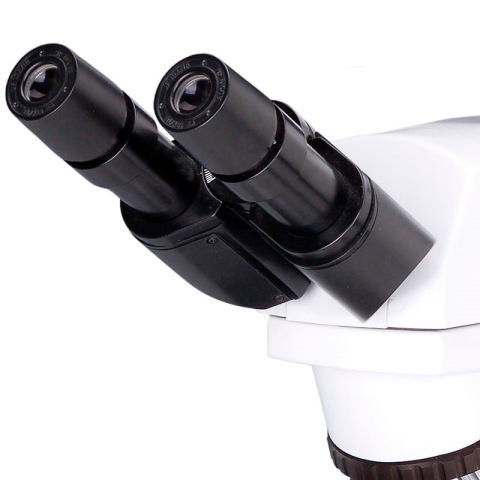

| Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | |
| Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | ||
| Eyepiece | Wide Field Eyepiece WF10x/18mm | ||
| Objective | Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x | ||
| Nosepiece | Backward Quadruple Nosepiece | ||

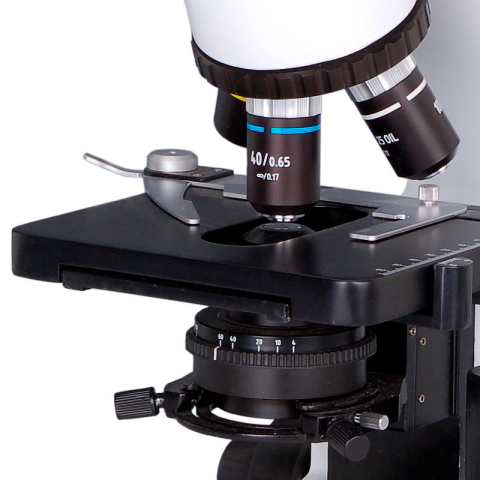

| Stage | Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm | ||
| Condenser | Sliding-in Center Adjustable Condenser N.A.1.25 | ||
| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | ||
| Illumination | S-LED Illumination, Adjustable Brightness | ||
| Laboratory Biological Microscope Optional Accessories | |||
| Eyepiece | WF10x/20mm, Diopter Adjustable | YR0237-1-op1 | |
| Objective | Infinity Plan Achromatic Objective 4x | YR0237-1-op2 | |
| Infinity Plan Achromatic Objective 10x | YR0237-1-op3 | ||
| Infinity Plan Achromatic Objective 40x | YR0237-1-op4 | ||
| Infinity Plan Achromatic Objective 100x | YR0237-1-op5 | ||
| Illumination | 6V20W Halogen Lamp, Brightness Adjustable | YR0237-1-op6 | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.7~0.9 | YR0237-1-op7 | |
| Dark Field Condenser,Immersion, N.A.1.25~1.36 | YR0237-1-op8 | ||
| Dark Field Objective, Infinity Plan 100X, | YR0237-1-op9 | ||
| ForImmersion Dark Field Observation | |||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm | YR0237-1-op10 | ||
| ForImmersion Dark Field Observation | |||
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0237-1-op11 | |
| –Infinity Plan Turret Phase Contrast Condenser | |||
| –Ininity Plan Phase Contrast Objective 4x,10x,40x,100x | |||
| –Centering Telescope 10x | |||
| Infinity Achromatic Turret Phase Contrast Set | YR0237-1-op12 | ||
| –Infinity Achromatic Turret Phase Contrast Condenser | |||
| –IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x | |||
| –Centering Telescope 10x | |||
| LED EPI-Fluorescent Kit | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 | YR0237-1-op13 | |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0237-1-op14 | ||
