Description

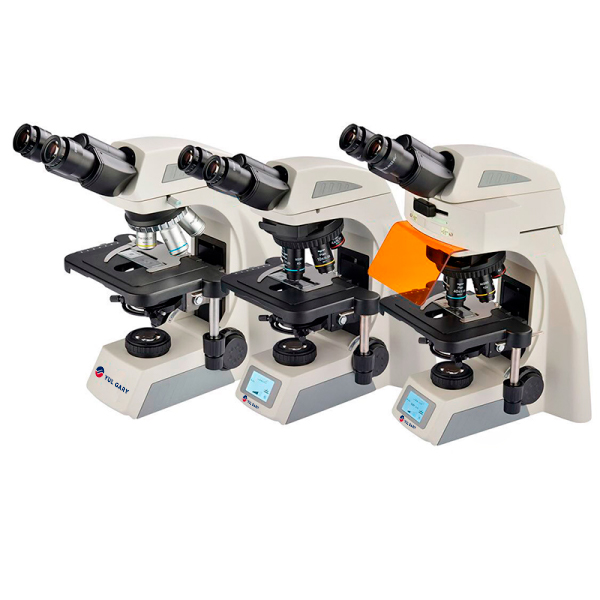

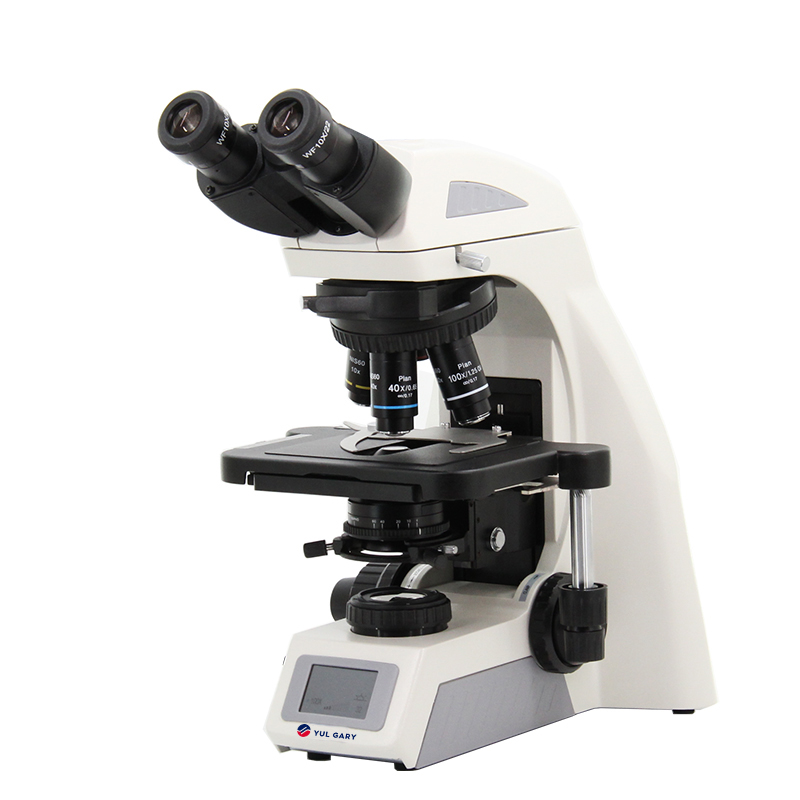

The Laboratory Biological Microscope YG0676A // YG0676B is an essential tool for laboratories that require precision and clarity in biological examinations. With its advanced NIS Infinity Optical System, this microscope provides high-contrast and flat images, catering to research labs, clinical diagnostics, and educational purposes. The models feature Infinity Plan objectives ensuring sharp, high-resolution images and a wide field of view. Additionally, its ergonomic design, available in Seidentopf binocular or trinocular configurations, is tailored for comfort during extended use.
Market Price
The Laboratory Biological Microscope YG0676A // YG0676B is competitively priced between $2,011 and $2,150 USD. The exact price varies depending on the configuration and any additional accessories required, offering versatility for different laboratory needs.
Frequently Asked Questions
- What is the difference between the YG0676A and YG0676B models? The YG0676A model features a binocular head, suitable for standard viewing, while the YG0676B includes a trinocular head, ideal for integrating digital imaging.
- Does this microscope support digital imaging? Yes, specifically the YG0676B model, which is compatible with C-Mount adapters and can include a built-in Wi-Fi camera for real-time sharing.
- Can this microscope be used for fluorescence and phase contrast microscopy? Yes, both models can be adapted for specific advanced imaging needs like epi-fluorescence and phase contrast with optional attachments.
Advantages and Disadvantages
Advantages:
- Utilizes NIS Infinity Optical System for exceptional image clarity.
- Equipped with a coded nosepiece for automatic brightness adjustments.
- Comfortable ergonomic design with customizable eye settings.
- Durable anti-scratch stage enhances robustness.
- Optional Wi-Fi digital head facilitates easy image sharing.
- Modular design allows for future accessory upgrades.
Disadvantages:
- Higher initial investment compared to basic models.
- Advanced features may require additional training for new users.
- Add-on modules increase the total equipment cost.
Field Applications
The Laboratory Biological Microscope YG0676A // YG0676B has a wide range of applications across various fields:
- Clinical and Medical Diagnostics – Perfect for analyzing tissue samples, blood smears, and microbiological cultures.
- Academic and Research Laboratories – Ideal for supporting biological, cellular, and histological studies.
- Pharmaceutical and Biotechnology – Useful in evaluating drug interactions and cellular responses.
- Forensic Science – Facilitates the analysis of biological evidence and trace materials.
- Industrial Quality Control – Beneficial for inspecting specimens in food and environmental sciences.
Recommendations for Optimal Use
- Regularly calibrate and clean optical components to maintain clarity.
- Utilize the coded nosepiece for automatic brightness adjustments.
- Adjust interpupillary and diopter settings for enhanced comfort and precision.
- Ensure proper camera calibration for digital imaging tasks.
Technical Specifications
| Model | Cata. No. | YG0676A | YG0676B | |
| Optical System | NIS Infinite Optical System | ● | ● | |
| Observation Method | Bright Field | ● | ● | |
| Dark Field | ○ | ○ | ||
| Polarizing | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ||
| Epi-Fluorscence | ○ | ○ | ||
| Head | Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YG0676B-op1 | ● | |
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50 | YG0676B-op2 | ● | ||
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0 | YG0676B-op3 | ○ | ○ | |
| Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YG0676B-op4 | ○ | ○ | |
| Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time | YG0676B-op5 | ○ | ○ | |
| Upgrade to A31.1062-5.0M | ||||
| Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet. | YG0676B-op6 | ○ | ○ | |
| Upgrade to A31.1062-5.0W | ||||
| Eyepiece | EW10x/22mm, Diopter Adjustable, Dia.30mm | YG0676B-op7 | ● | ● |
| EW15x/16mm, Diopter Adjustable, Dia.30mm | YG0676B-op8 | ○ | ○ | |
| EW20x/12mm, Diopter Adjustable, Dia.30mm | YG0676B-op9 | ○ | ○ | |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | YG0676B-op10 | – | – |
| Coded Quintuple Nosepiece, Dovetail Interface | YG0676B-op11 | ● | ● | |
| NIS45 | 4x/0.10, W.D.20.6mm | YG0676B-op12 | – | – |
| Infinity Plan | 10x/0.25, W.D.17.9mm | YG0676B-op13 | – | – |
| Objective | 20x/0.40, W.D.6.40mm | YG0676B-op14 | – | – |
| 40x/0.60, W.D.1.50mm | YG0676B-op15 | – | – | |
| 60x/0.80, W.D.0.30mm | YG0676B-op16 | – | – | |
| 100x/1.25(Oil), W.D.0.16mm | YG0676B-op17 | – | – | |
| 100x/1.10(Water), W.D.0.16mm | YG0676B-op18 | – | – | |
| NIS60 | 4x/0.10, W.D.30.0mm | YG0676B-op19 | ● | ● |
| Infinity Plan | 10x/0.25, W.D.10.2mm | YG0676B-op20 | ● | ● |
| Objective | 20x/0.40, W.D.4.8mm | YG0676B-op21 | ○ | ○ |
| 40x/0.65, W.D.1.5mm | YG0676B-op22 | ● | ● | |
| 60x/0.80, W.D.0.30mm | YG0676B-op23 | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.3mm | YG0676B-op24 | ● | ● | |
| 100x/1.10(Water), W.D.0.2mm | YG0676B-op25 | ○ | ○ | |
| NIS60 | 10x/0.25, W.D.10.2mm | YG0676B-op26 | ○ | ○ |
| Infinity Plan | 20x/0.40, W.D.12.0mm | YG0676B-op27 | ○ | ○ |
| Phase Contrast | 40x/0.65, W.D.0.7mm | YG0676B-op28 | ○ | ○ |
| Objective | 100x/1.25(Oil), W.D.0.2mm | YG0676B-op29 | ○ | ○ |
| Focusing | Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm | ● | ● | |
| Working Stage | Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm | – | – | |
| Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform | ● | ● | ||
| Condenser | Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide. | ● | ● | |
| Illumination | 1W S-LED Critical Illumination | – | – | |
| 3W S-LED Kohler Illumination | ● | ● | ||
| Green Filter | ● | ● | ||
| Dark Field | Dark Field Slide | YG0676B-op29 | ○ | ○ |
| Polarizing | Simple Polarizing Set | YG0676B-op30 | ○ | ○ |
| Phase Contrast | Phase Slider For 10x-40x | YG0676B-op31 | ○ | ○ |
| Phase Slider For 100x | YG0676B-op32 | ○ | ○ | |
| Epi-Fluorescence Attachment | 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, | YG0676B-op33 | ○ | ○ |
| B, G Filters | ||||
| Filter U | YG0676B-op34 | ○ | ○ | |
| Filter V | YG0676B-op35 | ○ | ○ | |
| Photo Adapter | 1.0x C-Mount | YG0676B-op36 | ○ | ○ |
| 0.5x C-Mount | YG0676B-op37 | ○ | ○ | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | |
| USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely | ● | ● | ||
| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. | ● | ● | |
| Dimensions | 220(W)x290(D)x472(H) mm | ● | ● | |
| Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable | ||||
