Description

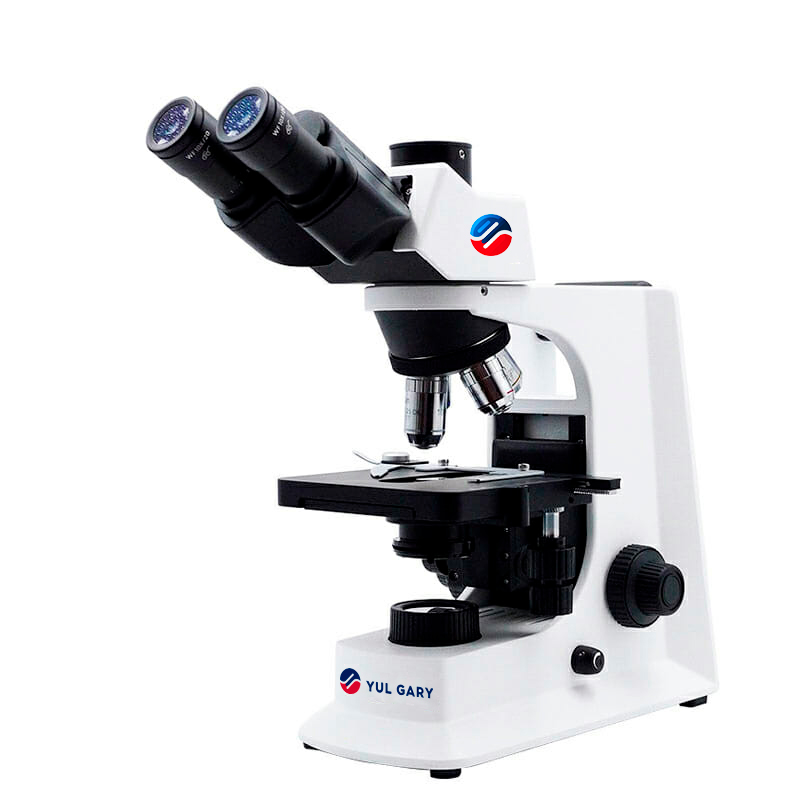

The Laboratory Biological Microscope, Trinocular, Achromatic YG0683-AT is a high-precision optical instrument designed for laboratories, research centers, and educational institutions. Featuring an achromatic optical system and a Seidentopf trinocular head, this microscope ensures exceptional clarity and accuracy for professional observations. With 40x to 1000x magnification, it supports detailed imaging across various applications. The LED illumination system (3W) provides high-intensity and long-lasting lighting, while its double-layer mechanical stage allows precise control of specimen positioning. One of its standout features is the 100x water objective, which eliminates the need for oil immersion, making it more convenient and reducing contamination risks.

In terms of ergonomics and usability, the YG0683-AT includes an inclined 30° and rotatable 360° head, adjustable interpupillary distance, and diopter adjustment, ensuring comfortable usage for extended periods. Its coaxial coarse and fine focusing mechanism with a focusing scale of 0.002mm enhances precision, making it ideal for pathology, microbiology, and advanced biological studies. Additionally, its Abbe condenser (N.A. 1.25) with iris diaphragm and filter holder optimizes contrast and resolution, offering high-quality images even at high magnifications.

Market Price

The price of the Laboratory Biological Microscope YG0683-AT varies depending on the market and optional upgrades such as dark field (DF), phase contrast (PH), fluorescence (FL), and polarization (PL). Generally, microscopes of this category range from $684 to $700 USD, depending on the selected configurations. If you need an exact quote, you can easily generate an automatic estimate through Kalstein Plus, ensuring you get the best deal with financing options.

Advantages and Disadvantages

Advantages:

• Wide Magnification Range (40x-1000x): Allows for detailed imaging suitable for various laboratory applications.
• 100x Water Objective: Eliminates the need for oil immersion, reducing contamination risks and simplifying maintenance.
• Seidentopf Trinocular Head: Enables comfortable viewing with adjustable interpupillary distance and the ability to attach a camera for digital imaging.
• LED Illumination System (3W): Provides bright, long-lasting lighting with lower energy consumption.
• Coaxial Coarse and Fine Focusing Mechanism: Ensures precision in specimen observation, with a fine focusing scale of 0.002mm.

Disadvantages:

• Limited to Achromatic Objectives: While it includes high-quality achromatic objectives, users may need to upgrade to plan or infinity plan objectives for advanced imaging.
• Requires Proper Maintenance: Regular cleaning and alignment checks are needed to maintain optimal image quality.
• No Built-In Camera: Although it supports digital imaging, users must purchase an external camera separately.

Frequently Asked Questions

• What type of objectives does the microscope include?
  It comes with achromatic objectives (4x, 10x, 40x, 100x), with the option to upgrade to plan or infinity plan objectives.
• Does it require oil for 100x magnification?
  No, it features a 100x water objective, eliminating the need for cedar oil and reducing contamination risks.

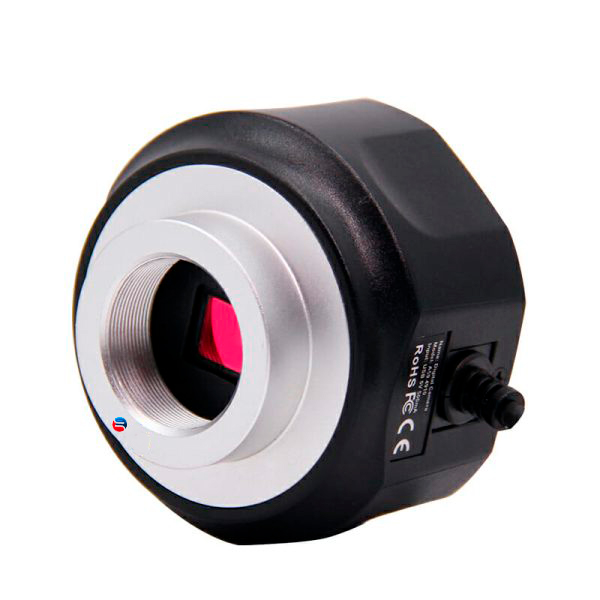

• Can I connect a camera for digital imaging?
  Yes, the trinocular head allows camera attachment for documentation and digital analysis.
• What power supply does it use?
  It operates via a DC USB adapter, making it energy-efficient and adaptable to different voltage standards.

Field Applications

The YG0683-AT microscope is widely used in clinical laboratories, universities, biotechnology facilities, and research institutions. It is particularly suitable for histology, microbiology, hematology, cytology, and pathology, where high-precision imaging is required. Due to its trinocular head, it is frequently used in digital imaging and documentation, allowing integration with cameras and software for advanced image analysis.

Additionally, its high stability and mechanical accuracy make it a valuable tool for pharmaceutical testing, forensic science, and agricultural research, where sample observation requires high reproducibility. The option to integrate different contrast techniques (such as phase contrast, dark field, and fluorescence) expands its usability to more complex applications, including live cell imaging, bacterial identification, and advanced tissue analysis.

Recommendations

To ensure optimal performance and longevity of the YG0683-AT microscope, it is essential to follow proper maintenance guidelines. Regular cleaning of the lenses with a soft lens cloth and specialized optical cleaner will help maintain image clarity. The stage and focusing mechanisms should be checked periodically to prevent misalignment and ensure smooth operation.
