Description

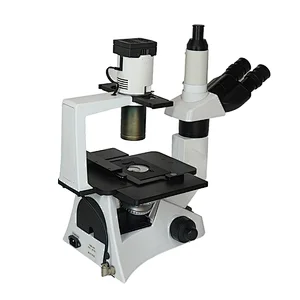

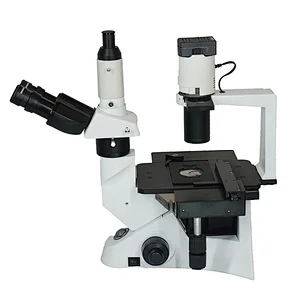

The Inverted Trinocular Microscope YG0646 is a state-of-the-art instrument designed for the detailed observation of transparent and living specimens in culture bottles and laboratory utensils. Featuring an infinity optical system, extra-wide field eyepieces (EW10x/22mm), and long working distance plan achromatic objectives, this microscope ensures crisp, high-contrast imaging essential for biological research, cell culture studies, and liquid deposit analysis. Its trinocular head allows easy integration with a camera or imaging system, making it a versatile choice for advanced microscopy applications.
Designed for efficiency and accuracy, the YG0646 comes with a quintuple nosepiece, coaxial coarse & fine adjustment focusing, and a phase contrast system for enhanced visualization of specimens. The large working stage (160 x 250mm) provides ample space for sample manipulation, while the external Kohler illumination system with a 6V 30W halogen lamp ensures uniform lighting. Additionally, the ELWD condenser (0.3 N.A.) allows observations at a long working distance of up to 150mm without requiring the condenser, offering greater flexibility for various sample types.
Market Price
The Inverted Trinocular Microscope YG0646 is priced between $3.842 and $4.000 USD, depending on optional accessories, supplier, and order volume. Special discounts may apply for bulk purchases or institutional buyers.
Frequently Asked Questions
- What applications is the YG0646 microscope best suited for?
This microscope is widely used in biological research, cell culture studies, microbiology, and pharmaceutical analysis, allowing high-precision observation of living and transparent specimens. - Can I integrate a digital camera with this microscope?
Yes, the trinocular head allows for easy integration with a C-Mount camera or photo adapter, enabling real-time imaging and documentation. - What is the advantage of the phase contrast feature?
The phase contrast system enhances visualization of unstained live cells and transparent samples, making it ideal for biomedical and research applications.
Advantages and Disadvantages
Advantages:
- Infinity Optical System – Ensures sharp, high-contrast imaging for precise observations.
- Trinocular Design – Allows simultaneous visual observation and digital imaging.
- Phase Contrast System – Improves visibility of transparent and live specimens.
- Long Working Distance Objectives – Provides flexibility for various sample types.
Disadvantages:
- Higher price range compared to basic microscopes.
- Requires phase contrast objectives for optimal performance.
- External illumination system may require additional space.
Field Applications
The Inverted Trinocular Microscope YG0646 is widely used in:
- Biological and Cell Culture Research – Ideal for observing live cells, bacteria, and microorganisms.
- Medical and Pharmaceutical Analysis – Supports tissue culture, drug testing, and diagnostic research.
- Microbiology and Biochemistry – Enables detailed analysis of microorganisms and chemical reactions.
- Academic and Industrial Laboratories – Provides high-precision imaging for advanced research.
With exceptional optical clarity, user-friendly operation, and expandable features, the YG0646 is a premier choice for professional laboratories.
Recommendations
To ensure optimal performance and longevity, follow these best practices:
- Regularly clean optical components to maintain clarity and precision.
- Use proper objective lenses based on sample type and experimental requirements.
- Ensure stable power supply for the illumination system to prevent fluctuations.
- Adjust the interpupillary distance and diopter settings for ergonomic comfort.
- Upgrade with additional accessories to expand the microscope’s capabilities.
Technical Specifications
| Model | YG0646 | ||
| Optical System | Infinity Optical System | ||

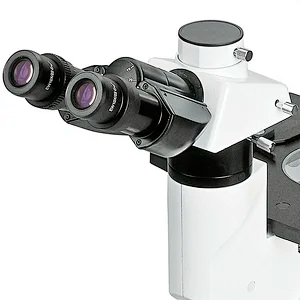

| Head | Seidentopf Trinocular Head, 30° Inclined, | ||
| Interpupillary 48~75mm, Diopter Adjustable | |||
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, High Eye point | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan LWD Achromatic Objective | 4x/0.1, W.D.18mm | |
| 40x/0.6, W.D.2.6mm,Cover Glass 1.2mm | |||
| Infinity Plan Phase Contrast Achromatic Objective | PH10x/0.25, W.D.10mm | ||
| PH20x/0.40, W.D.5.1mm | |||
| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per | ||
| Rotation | |||
| Working Stage | Plain Stage 160*250mm | ||
| –Glass Insert Plate | |||
| –Auxiliary Stage 70*180mm | |||

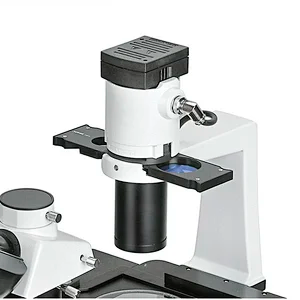

| Condenser | ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser | ||
| Phase Contrast | –Centering Telescope, Tube Dia.30mm | ||
| –Phase Contrast Slide, 2 Holes For 10x-20x Objective | |||
| Filter | Green, Blue, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Adapter | Eyepiece Adapter Dia.23.2mm | ||
| Inverted Laboratory Biological Microscope Optional Accessories | |||
| Objective | Infinity Plan LWD Achromatic Objective | 10x/0.25,W.D.10mm | YR0230-op1 |
| 20x/0.4,W.D.5.1mm | YR0230-op2 | ||
| Phase Contrast | Infinity Plan Phase Contrast Achromatic Objective | PH40x/0.6,W.D.0.35mm | YR0230-op3 |
| Phase Contrast Slide, 3 Holes For 10x-20x-40x Objective | YR0230-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0230-op5 | |
| Ergonomic Stage Knob’s Height & Position Along Y-Axis Movable To Where It | |||
| Is Most Comfortable, Tightness Adjustable | |||
| Terasaki Holder, Inner Holding Size 56x88mm | YR0230-op6 | ||
| Petri Dish Holder Dia.38mm | YR0230-op7 | ||
| Slide Glass Holder Dia.54mm | YR0230-op8 | ||
| Slide Glass Holder Dia.90mm | YR0230-op9 | ||
| Adapter | Photo Adapter | YR0230-op10 | |
| C-Mount 1.0x | YR0230-op11 | ||
| C-Mount 0.45x | YR0230-op12 | ||
| Fluorescent | Fluorescent Attachment | YR0230-op13 | |
