Description

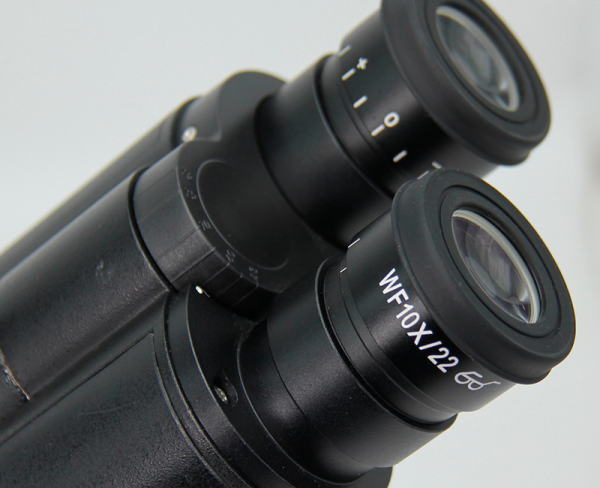

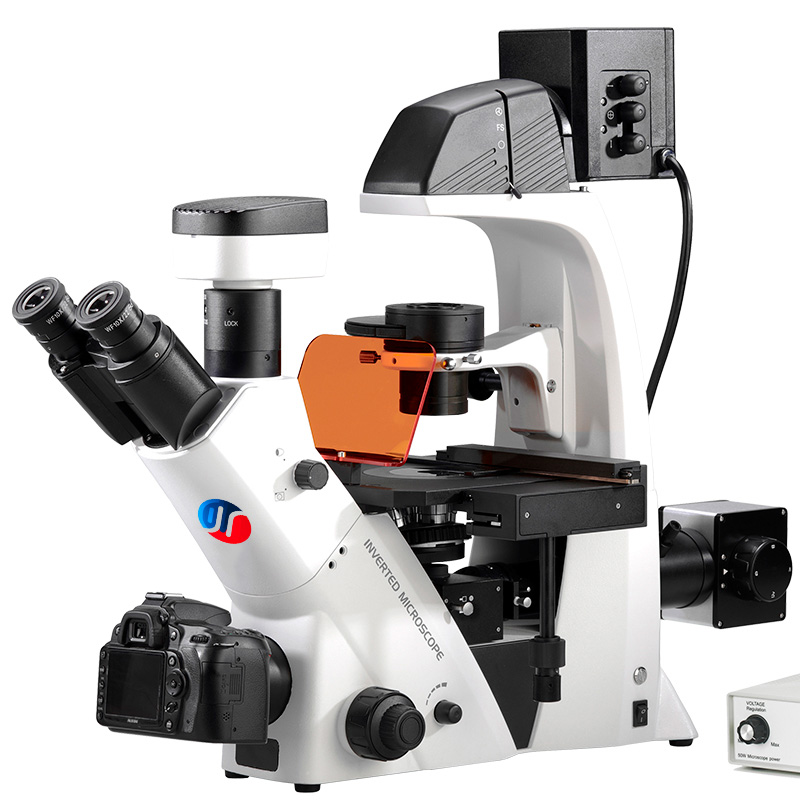

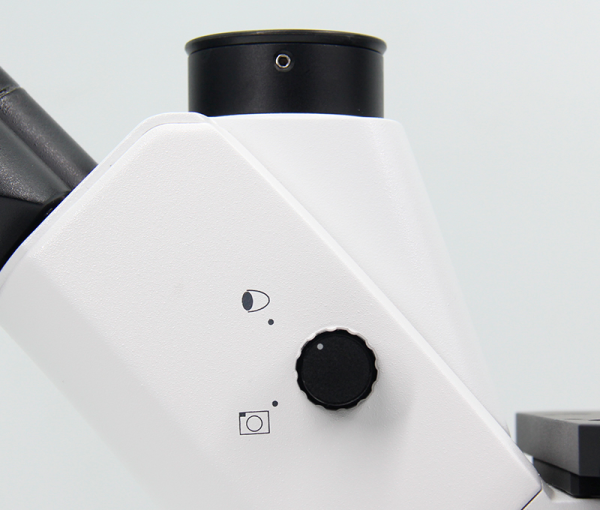

The Inverted LED Fluorescent Microscope YG0686 // YG0687 is designed to meet the high standards of professionals in fields such as cell biology, microbiology, and materials science. This advanced microscope features a Seidentopf trinocular head that is inclined at 45°, ensuring ergonomic viewing and minimizing strain during extended observation sessions. The interpupillary distance is adjustable from 48 to 76mm, accommodating a wide range of users for comfortable viewing. Equipped with infinity plan phase contrast fluorescent objectives, including 4x, 10x, 20x, and 40x magnifications, this microscope provides exceptional clarity and resolution, making it ideal for studying specimens in detail.

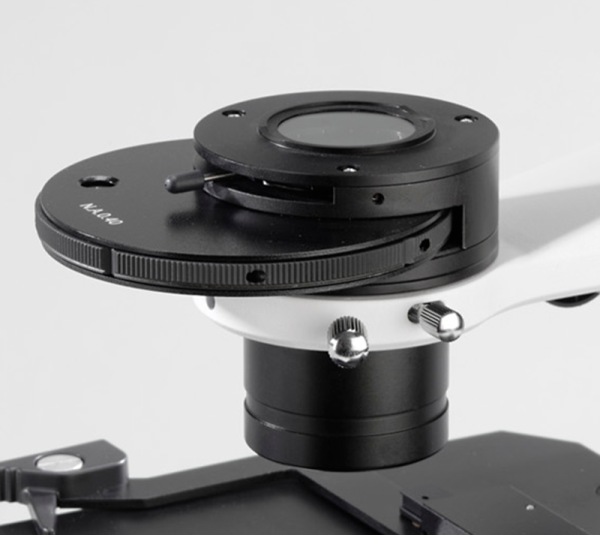

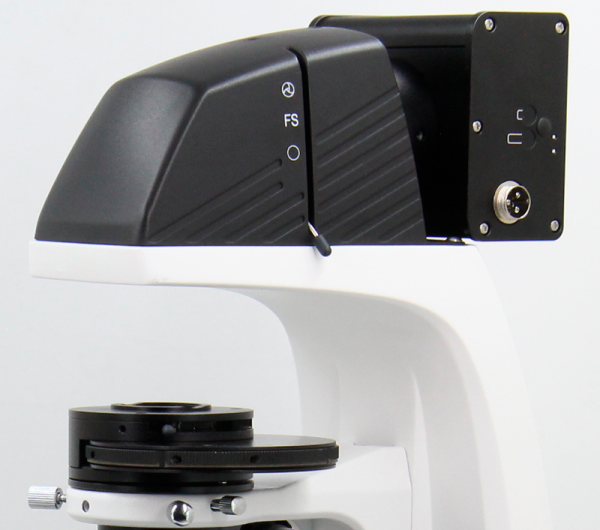

For enhanced functionality, the YG0686 and YG0687 models feature Koehler illumination, a halogen light source (12V/50W) that provides bright and even lighting for clear imaging. The microscope is also equipped with a phase contrast condenser with a rotating disc, offering adjustable working distances for precise focus adjustments. One of the key features is the eco-friendly auto power off system, which automatically powers off the device after 10 minutes of inactivity and turns it back on when a user approaches. This helps conserve energy while ensuring the microscope is always ready for use when needed.

Market Price

The Inverted LED Fluorescent Microscope YG0686 // YG0687 is priced between $7.483 and $8.550 USD, depending on the configuration and specific model chosen. This pricing is competitive for microscopes with advanced optical systems, phase contrast capabilities, and high-quality LED fluorescence illumination. For laboratories or research institutions seeking cutting-edge imaging tools without exceeding their budget, this microscope offers excellent value. To get a customized quote and learn about discounts, you can easily generate an automatic quote on the Kalstein Plus platform, ensuring you get the best price.

Frequently Asked Questions

• What is the main difference between the YG0686 and YG0687 models?
  The primary difference lies in the light source and the number of fluorescence bands. The YG0686 model offers a 5W LED light source and a 3-band fluorescence filter, providing enhanced visibility and contrast. Meanwhile, the YG0687 may offer more advanced or additional features, depending on your specific needs.
• Can this microscope be used for live cell imaging?
  Yes, both models are equipped with long working distance (LWD) objectives, making them suitable for live cell imaging applications. The LED fluorescence light source ensures minimal heat generation, which is crucial for live cell imaging.
• How does the auto power off system work?
  The auto power off system helps conserve energy by automatically powering off the microscope after 10 minutes of inactivity. When a user approaches, the microscope powers back on. This feature can be manually turned off if preferred.

Advantages and Disadvantages

Advantages

• Exceptional optical quality: With infinity plan fluorescent objectives, the YG0686 // YG0687 ensures sharp, high-resolution images for detailed analysis.
• Eco-friendly features: The automatic power-off system saves energy without sacrificing performance, making it ideal for labs aiming to reduce their environmental impact.
• Ease of use: The trinocular head and adjustable interpupillary distance ensure a comfortable viewing experience for a wide range of users.
• Versatility: The phase contrast condenser and long working distance objectives make this microscope suitable for a variety of research applications, from microbiology to materials science.

Disadvantages

• Price: While the microscope offers excellent value for its features, the initial investment might be higher than basic models, potentially limiting its accessibility for smaller labs with budget constraints.
• Size and weight: Its relatively large size and weight may not be ideal for labs with limited space or those requiring portable equipment.

Product Use in the Field

In practical applications, the Inverted LED Fluorescent Microscope YG0686 // YG0687 is commonly used in research environments where high magnification and contrast are required to analyze live cells, tissue cultures, and microscopic organisms. The phase contrast condenser and the 5W LED fluorescence light source are particularly useful for studying biological samples with minimal preparation. Researchers can rely on its long working distance to examine petri dishes and cell cultures without interference, making it an invaluable tool for cell biology and microbiology studies.

Recommendations

To maximize the life and performance of your Inverted LED Fluorescent Microscope YG0686 // YG0687, it is recommended to regularly clean the optical components and condenser to avoid dust buildup, which can affect image quality. Additionally, ensuring that the power-off feature is enabled will help conserve energy when the microscope is not in use. For the best imaging results, always use compatible slides and accessories and ensure the device is calibrated correctly before each session.

Technical Specifications
