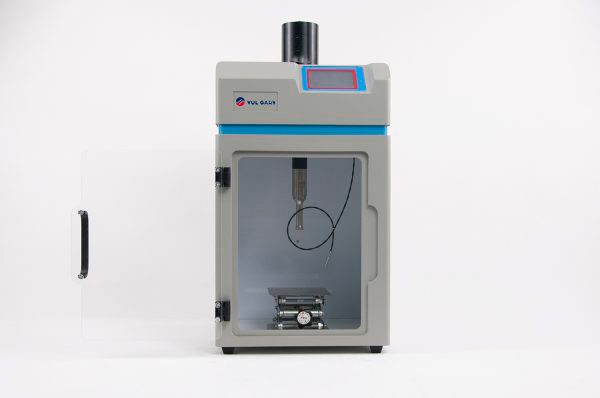

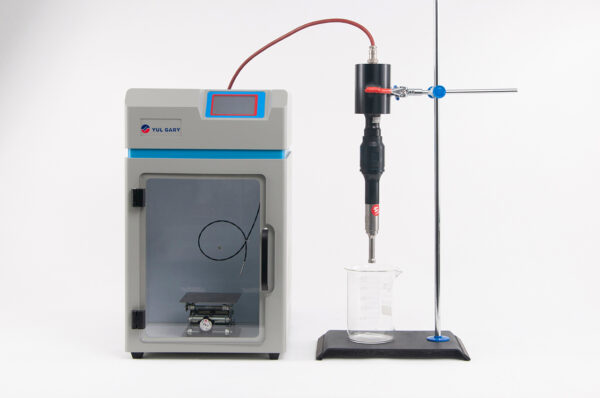

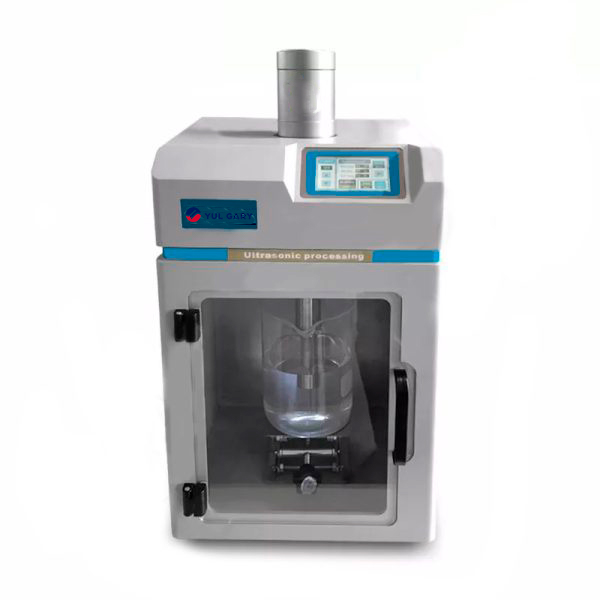

Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YG0759 // YG0761

ManufacturerYUL GARY

Description

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YG0759 / YG0761 is a cutting-edge laboratory instrument designed for solid-liquid and liquid-liquid treatment, offering unparalleled precision and efficiency in sample preparation. These ultrasonic dispersers provide stable and reliable performance, making them a superior choice compared to traditional ultrasonic crushers. Compact in design, they save valuable laboratory space while offering advanced features such as a lifting table and built-in lighting, ensuring a safer and more convenient experimental operation. The YG0759 and YG0761 models deliver powerful ultrasonic processing with adjustable power output ranging from 0-100%, providing total control over your sample homogenization.

Market Price

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YG0759 / YG0761 is available within a competitive price range. The YG0759 model is priced around $1.060, while the YG0761 is priced higher, starting from $1.760. Prices may vary depending on additional configurations or optional accessories, such as magnetic stirring systems or cooling water circulation setups, which can be added to further enhance the instrument’s functionality.

Frequently Asked Questions

  • What is the processing capacity of these models?
    The YG0759 can process 100 to 1200 ml, the YG0761 can handle up to 3000 ml, making these homogenizers suitable for various laboratory and industrial applications.
  • How long can the ultrasonic homogenizer run continuously?
    The ultrasonic time can be set up to 99 hours, offering flexibility for long-term experiments and processing without manual intervention.
  • Can I use these models for DNA or protein extraction?
    Yes, these models are ideal for applications such as DNA and protein extraction, as well as other life sciences tasks such as cell disruption and chromatin immunoprecipitation.

Advantages and Disadvantages

  • Advantages:

Precise Control: Adjustable power settings and a large LCD touchscreen make it easy to control the ultrasonic parameters, ensuring high-quality results.

Space-Saving Design: Compact and user-friendly, it is equipped with a lifting table and built-in lighting for enhanced convenience.

Wide Application Range: Suitable for life sciences, material chemistry, chemical reactions, and more, making it a versatile tool in many fields.

Automatic Frequency Tracking: Ensures stable performance with automatic compensation for frequency changes during processing.

  • Disadvantages:

High Initial Cost: The advanced features come at a higher price point, especially for the YG0761 model, which may not be suitable for smaller laboratories with budget constraints.

Maintenance Requirements: As with any high-performance equipment, regular maintenance is required to ensure optimal function and longevity.

Use of the Product in the Field

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YG0759 / YG0761 is widely used in various scientific fields. In life sciences, it is employed for tasks such as lysis, cell disruption, and protein extraction. In material c

Technical Description

Model

YG0759 YG0759-1 YG0760 YG0761
Working Frequency

19~25KHz   Automatic compensation

Ultrasonic Power 950W 650W 1200W 1800W
Processing Capacity 100~1200ml 50~800ml 100~2000ml 100~3000ml
Power adjustable

0~100%

Timer LCD Touch screen, adjustable from 1s to 99h
Pulser Digital, closed loop, open loop, 1s to 99min to choose and set
Ultrasonic mode Pulse mode / Continuous mode
Standard Probe Φ13mm Φ6mm Φ16mm Φ20mm
Optional Probe Φ3/6/8/10/16/18mm Φ3/6/8/13/16mm Φ3/6/8/10/13/18/20mm Φ3/6/8/10/13/16/18/25mm
Energy Converter CV33, PZT lead zirconate titanate piezoelectric ceramics
Probe Material Titanium Alloy TI-6AL-4V
Cabinet lighting yes
Lifting table yes
Machine size 245*365*245mm
Sound Proof box size 240*250*390mm
Power Supply AC220/50Hz,110V/60Hz
Optional Configuration Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack
