Description

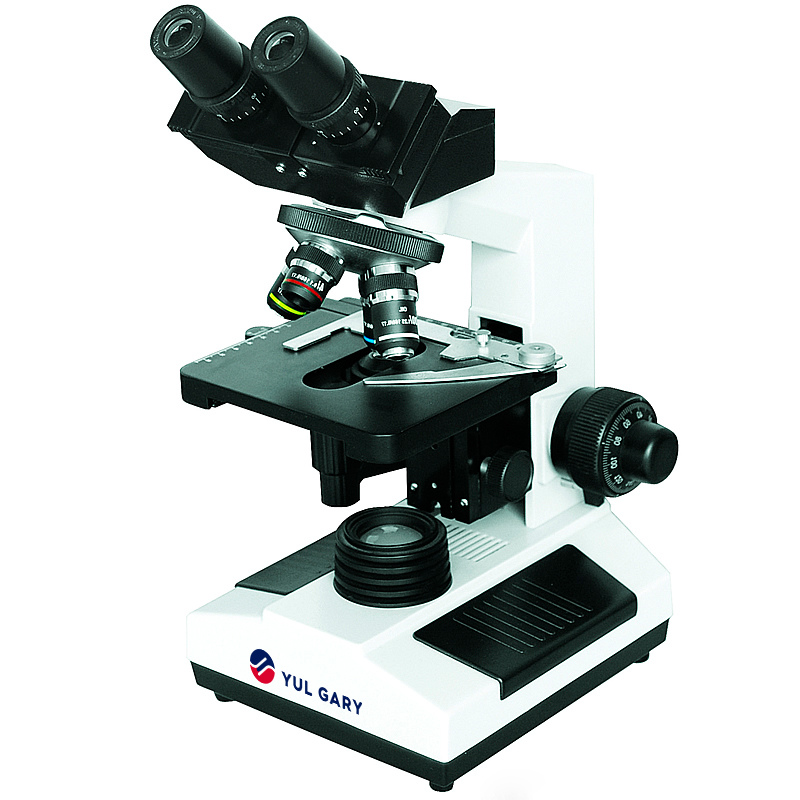

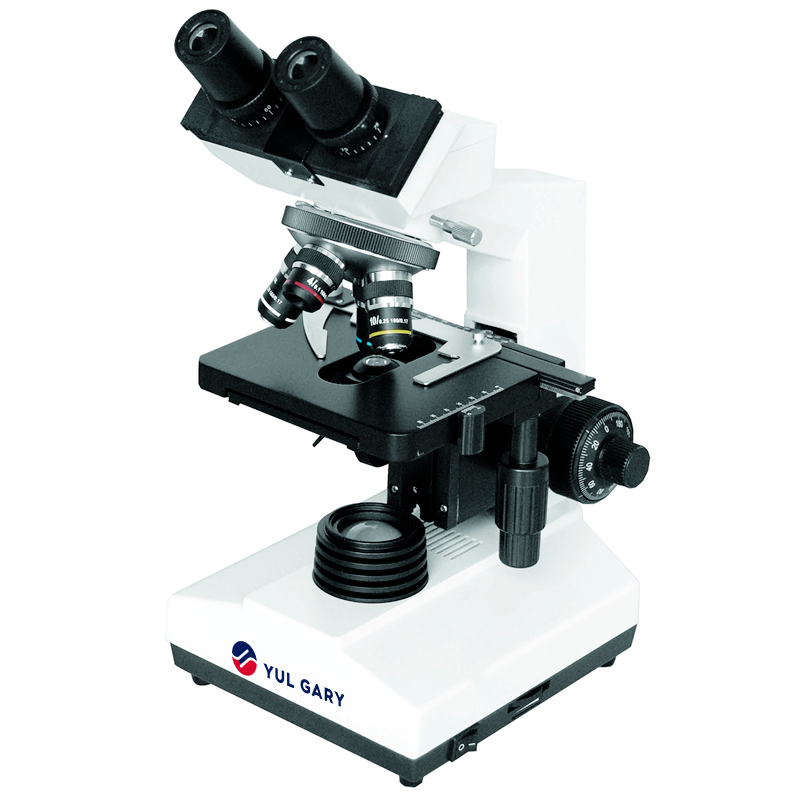

The Binocular Student Biological Microscope YG0658 // YG0658-1 is designed to provide high-quality imaging and precision for educational, clinical, and research applications. Equipped with achromatic objectives (4x, 10x, 40x, 100x oil immersion) and a quadruple revolving nosepiece, this microscope delivers sharp, clear, and distortion-free observations. Its binocular head is inclined at 45° for ergonomic comfort, while the YG0658-1 model includes an anti-mold system, making it ideal for humid environments.

This microscope features a coaxial coarse and fine focus system with a fine focusing scale of 0.002mm, allowing for precise adjustments during high-magnification observations. The double-layer mechanical stage (140x140mm, moving range 50x75mm) ensures smooth and precise slide positioning, while the N.A.1.25 Abbe condenser with an iris diaphragm enhances light control and image contrast. With multiple lighting options, including a built-in 6V/20W halogen lamp and a plan-concave mirror, it is adaptable to various laboratory conditions.

Market Price

The Binocular Student Biological Microscope YG0658 // YG0658-1 is priced between $391and $412 USD, depending on configuration and optional accessories such as trinocular heads, phase contrast kits, and quintuple nosepieces. To obtain an exact quote tailored to your needs, request a personalized estimate through Kalstein Plus.

Frequently Asked Questions

• What is the difference between the YG0658 and YG0658-1 models?
  The YG0658-1 model includes an anti-mold system, making it more suitable for laboratories in humid environments.
• Does this microscope support digital imaging?
  Yes, the trinocular head option allows for digital camera integration for image capturing and analysis.
• What type of illumination does the microscope use?
  It includes a built-in 6V/20W halogen lamp, but also supports external light sources with a plan-concave mirror.

Advantages and Disadvantages

Advantages:

• High-quality achromatic optics for clear imaging.
• Binocular and trinocular options for enhanced versatility.
• Ergonomic 45° inclined head for comfortable use.
• Anti-mold system (YG0658-1 model) for humid environments.
• Coaxial coarse and fine focusing knobs for precision adjustments.

Disadvantages:

• Not compatible with fluorescence imaging.
• Halogen bulb may require periodic replacement.
• 100x oil immersion lens requires careful handling.

Field Applications

The YG0658 // YG0658-1 Biological Microscope is widely used in:

• Educational institutions – Teaching biology, histology, and microbiology.
• Medical and clinical laboratories – Diagnostic applications and research.
• Pharmaceutical and biotechnology research – Cell and microorganism analysis.
• Industrial quality control – Material and surface inspections.

Recommendations

To maintain optimal performance, it is recommended to:

• Clean the lenses regularly with a microfiber cloth and lens cleaner.
• Store the microscope in a dry, dust-free environment, especially in humid conditions.
• Use only recommended immersion oil for the 100x objective to prevent contamination.
• Adjust the condenser and diaphragm settings properly to achieve the best image contrast.
