Description

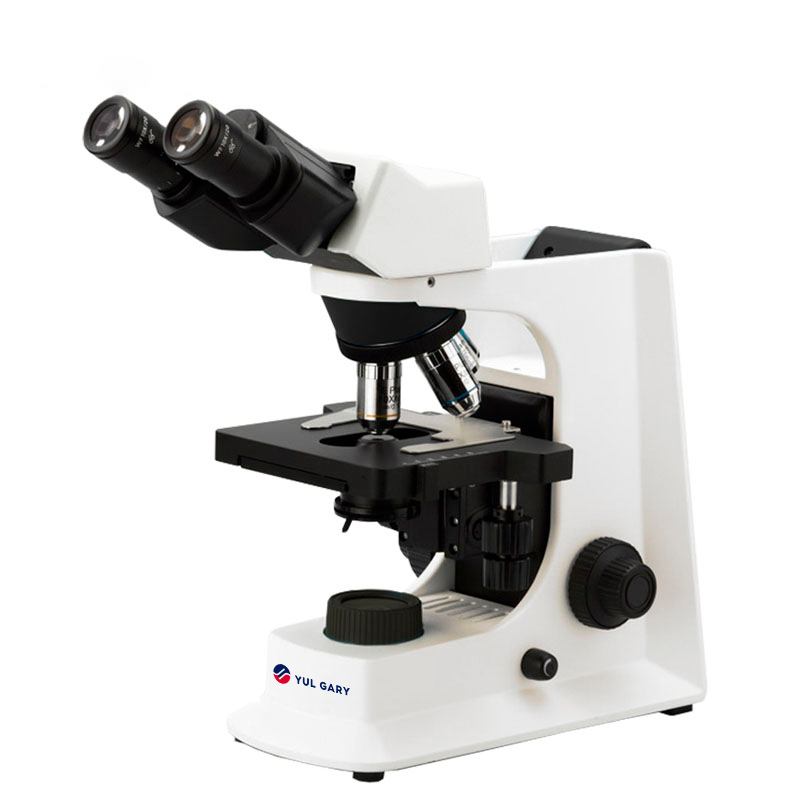

The Binocular Infinity Plan Laboratory Biological Microscope YG0682 // YG0683 is a high-performance optical instrument designed for precise and clear biological observations. With its Seidentopf binocular or trinocular head, it offers a 30° inclined view that can rotate 360°, making it comfortable for users of various heights. The interpupillary distance ranges from 48mm to 75mm, ensuring an optimal viewing experience for all users. This microscope is equipped with a high eyepoint eyepiece (WF10x/20mm) that improves user comfort by reducing eye strain.
This advanced microscope supports a range of 4 objective types, including Achromatic, Plan, Infinity E-Plan, and Infinity Plan objectives, providing exceptional image clarity with superior contrast and resolution. The mechanical stage, measuring 145mm × 140mm, allows precise movement with a travel range of 76mm × 52mm, perfect for detailed sample analysis. The Abbe condenser N.A. 1.25, equipped with an iris diaphragm, ensures excellent light control and sharp imaging. Furthermore, the 3W-LED illumination system provides bright, consistent lighting, reducing the need for frequent maintenance.
Market Price
The Binocular Infinity Plan Laboratory Biological Microscope YG0682 // YG0683 is competitively priced within the range of $848 to $936 USD, depending on the configuration and accessories chosen. For a customized quote and the best pricing available, request a quote via Kalstein Plus, where you can compare options and receive a tailored offer.
Frequently Asked Questions
- What are the main differences between the YG0682 and YG0683 models?
The YG0682 features a binocular head, while the YG0683 comes with a trinocular head, making it ideal for imaging applications where camera attachment is necessary. - Can the objective lenses be upgraded?
Yes, the microscope supports a variety of Infinity Plan objectives which can be upgraded for enhanced magnification and optical performance, including options like 100x oil immersion lenses. - Is the microscope suitable for both educational and professional environments?
Absolutely. Its versatile optics and mechanical stage make it ideal for both advanced research and teaching purposes in laboratories.
Advantages and Disadvantages
Advantages
- Infinity Plan optics offer outstanding clarity and contrast.
- Multiple objective lenses for varying magnification and application flexibility.
- Ergonomically designed eyepiece to accommodate different user heights and reduce eye strain.
- Precise mechanical stage for accurate sample manipulation.
- Reliable illumination system with low maintenance requirements.
Disadvantages
- Larger footprint, which may require more storage space in smaller labs.
- No built-in camera for direct imaging, though trinocular versions can be adapted with external cameras.
Field Use
This microscope is perfect for use in biological research, clinical laboratories, universities, and quality control in various industries. It is ideal for viewing biological specimens, such as tissue samples, microorganisms, and cell cultures. The high magnification capabilities, combined with the precise focusing mechanism, make it suitable for both routine observations and detailed research applications.
Recommendations
- Regularly calibrate the mechanical stage to ensure smooth movement and precision.
- Clean the eyepiece and lenses regularly with lens wipes to maintain image clarity.
- Use distilled water for the condenser to avoid mineral buildup and ensure optimal light transmission.
- Store the microscope in a dry environment to prevent rust and corrosion, especially on the metal parts.
Technical Specifications
| Model | Cata. No. | YG0682 | YG0683 | |
| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YG0683-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YG0683-op2 | ○ | ● | |

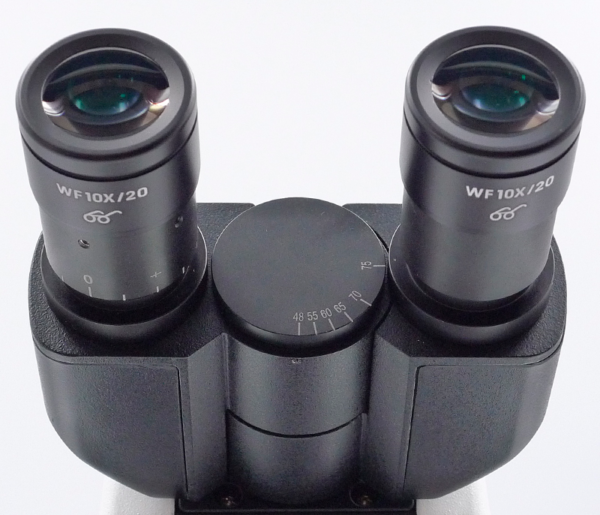

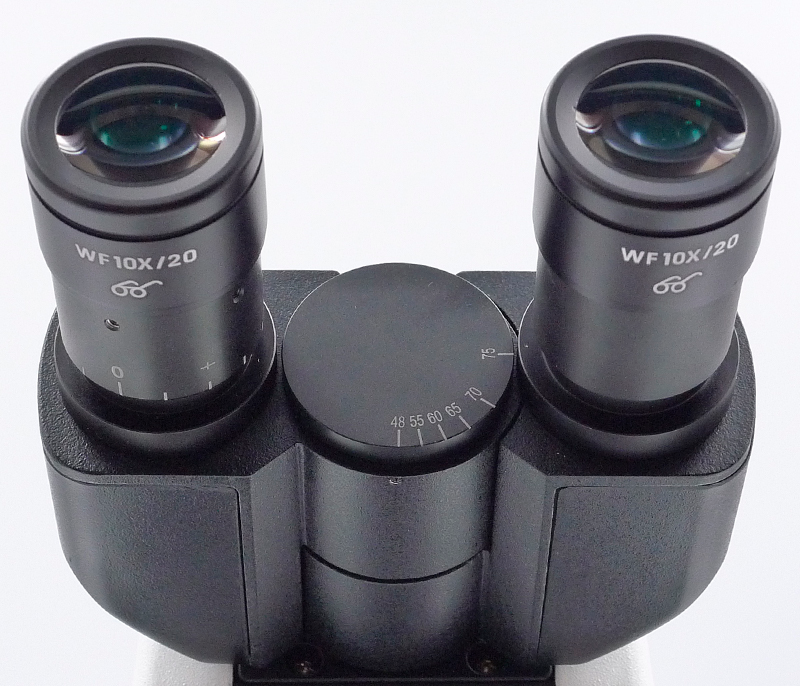

| WF10X/20mm (High Eyepoint) | YG0683-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YG0683-op4 | ● | ● |
| Quintuple, Backward | YG0683-op5 | ○ | ○ | |

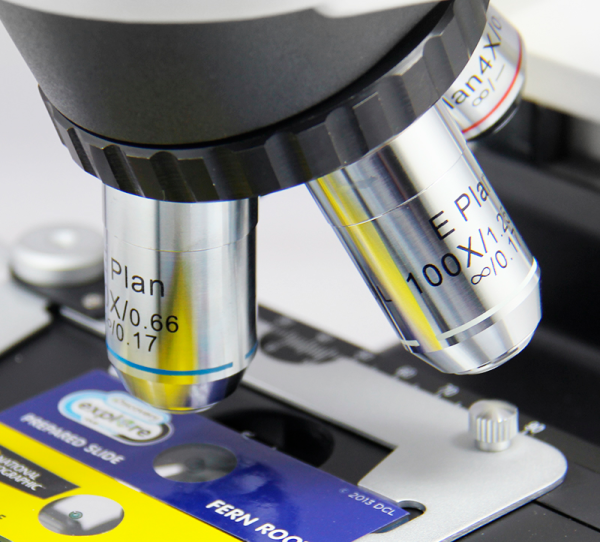

| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YG0683-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YG0683-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YG0683-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YG0683-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YG0683-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YG0683-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YG0683-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YG0683-op13 | ○ | ○ | |

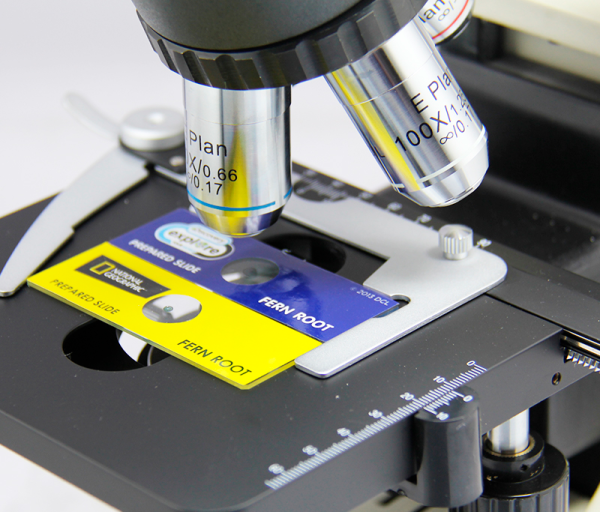

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YG0683-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YG0683-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | – | |||

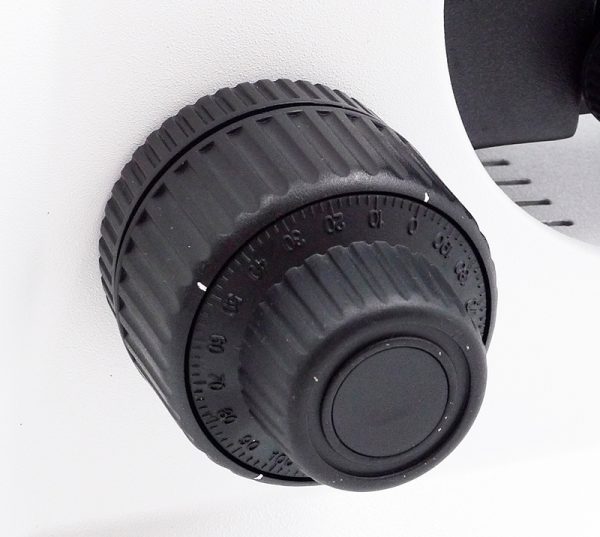

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YG0683-op16 | ● | ● |

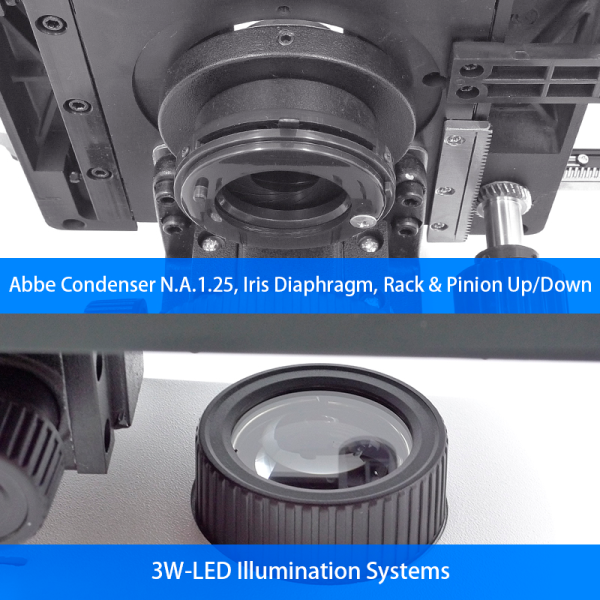

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YG0683-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YG0683-op18 | ● | ● |

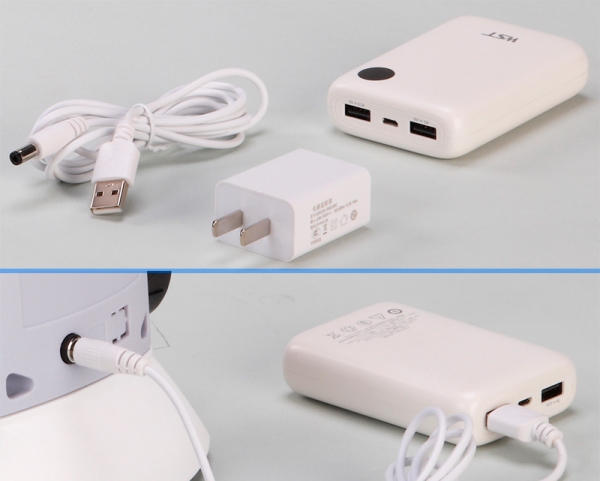

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | – | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YG0683-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YG0683-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YG0683-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YG0683-op23 | ○ | ○ |
| Dia.45mm, Green | YG0683-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YG0683-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YG0683-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YG0683-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YG0683-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YG0683-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YG0683-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YG0683-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YG0683-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | – | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YG0683-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YG0683-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YG0683-op35 | ○ | ○ |
| Attachment | Wire Winding Device | YG0683-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:”●”In Table Is Standard outfits,”○”Is Optional Accessories | ||||
